Same model may have multiple batches, images only for reference.

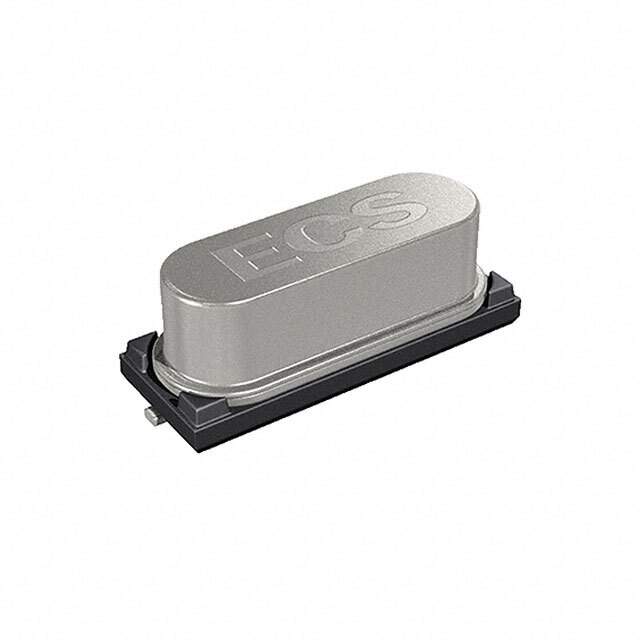

ECS-80-20-5G3XDS-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-80-20-5G3XDS-TR

Part No ECS-80-20-5G3XDS-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 20PF SMD / 8 MHz ±30ppm Crystal 20pF 60 Ohms HC-49/US
Datasheet
ECS-80-20-5G3XDS-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number XC1494DKRINACTIVE,ECS-80-20-5G3DS-TR,ECS80205G3XDSTR,XC1494CT,XC1494DKR-ND,XC1494TR,Q7673909,XC1494DKR
Standard Package 1,000
Win Source Part Number 1328342-ECS-80-20-5G3XDS-TR
Ultra Librarian 3D Model Ultra Librarian ECS-80-20-5G3XDS-TR CAD Model

Description

The ECS Inc. 1328342-ECS-80-20-5G3XDS-TR is a surface mount MHz crystal from ECS Inc.

  • Frequency: 8 MHz
  • Frequency Stability: ±100ppm
  • ESR: 60 Ohms
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Mode: Fundamental
  • Temperature Range: -40°C to 125°C
  • Package: HC-49/US
  • ROHS3 Compliant: Yes
  • REACH Affected: No
