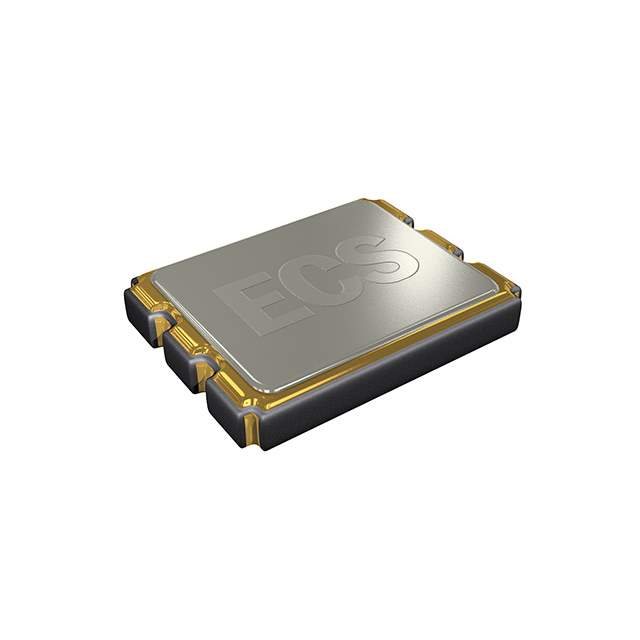

ECS-3225MV-240-CN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3225MV-240-CN-TR

Part No ECS-3225MV-240-CN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ HCMOS SMD / 24 MHz XO (Standard) HCMOS Oscillator 1.62V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
ECS-3225MV-240-CN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer ECS Inc.
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.62V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 4mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number XC2884TR,XC2884CT,XC2884DKR
Standard Package 1,000
Win Source Part Number 1328641-ECS-3225MV-240-CN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3225MV-240-CN-TR CAD Model

Description

The ECS Inc. oscillator is a surface mount type XO (standard) component.

  • Manufacturer: ECS Inc.
  • Mounting Type: Surface Mount
  • Type: XO (Standard)
  • Package: Reel - TR
  • Standard Package: 1,000
  • Win Source Part Number: 1328641-ECS-3225MV-240-CN-TR
  • Size/Dimension: 0.126 inches L x 0.098 inches W (3.20mm x 2.50mm)
  • Seated Height (Max): 0.047 inches (1.20mm)
  • Frequency: 24 MHz
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Current Supply (Max): 4mA
  • Current Supply (Disable) (Max): 10µA
  • HTSUS: 8542.39.0001
  • ROHS3: Compliant
  • Other Part Numbers: XC2884TR, XC2884CT, and XC2884DKR
