Same model may have multiple batches, images only for reference.

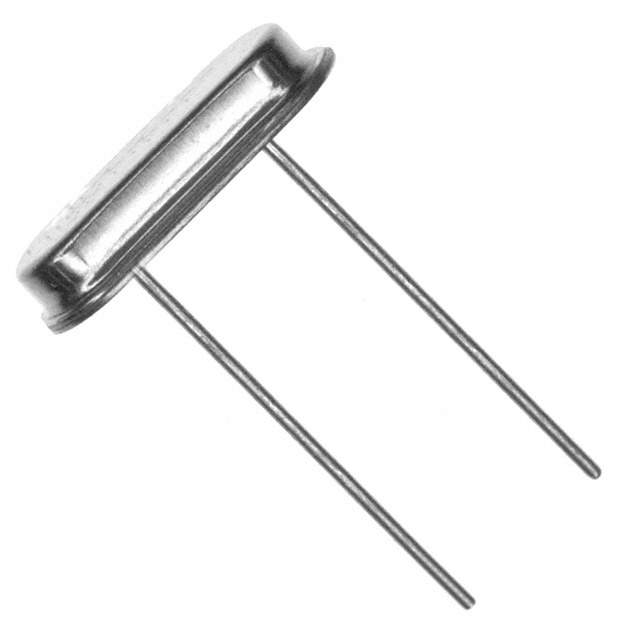

ECS-250-20-4VX Real Image
Same model may have multiple batches, images only for reference.

ECS-250-20-4VX

Part No ECS-250-20-4VX
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 20PF TH / 25 MHz ±30ppm Crystal 20pF 40 Ohms HC-49/US
Datasheet
ECS-250-20-4VX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Bulk
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Through Hole
Case / Package HC-49/US
Size / Dimension 0.447" L x 0.197" W (11.35mm x 5.00mm)
Height - Seated (Max) 0.083" (2.10mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Part Number ECS250204VX,XC1586,ECS-250-20-4V
Standard Package 200
Win Source Part Number 1329833-ECS-250-20-4VX
Ultra Librarian 3D Model Ultra Librarian ECS-250-20-4VX CAD Model

Description

The ECS Inc. ECS-250-20-4VX is a MHz crystal with a frequency of 25 MHz and a frequency tolerance of ±30ppm.

  • Frequency: 25 MHz
  • Frequency Tolerance: ±30ppm
  • ESR: 40 Ohms
  • Frequency Stability: ±50ppm
  • Package/Case: HC-49/US
  • Operating Temperature: -10°C ~ 70°C
  • Win Source Part Number: 1329833-ECS-250-20-4VX
