Same model may have multiple batches, images only for reference.

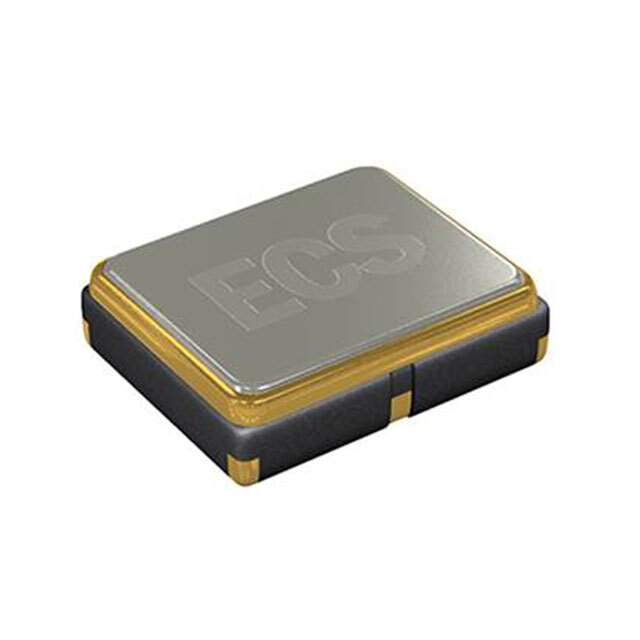

ECS-1612MV-260-CN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-1612MV-260-CN-TR

Part No ECS-1612MV-260-CN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 26.0000MHZ CMOS SMD / 26 MHz XO (Standard) CMOS Oscillator 1.6V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Datasheet
ECS-1612MV-260-CN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer ECS Inc.
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 26 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 5mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number XC2831TR,XC2831CT,XC2831DKR
Standard Package 3,000
Win Source Part Number 1328664-ECS-1612MV-260-CN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-1612MV-260-CN-TR CAD Model

Description

The 1328664-ECS-1612MV-260-CN-TR from ECS Inc. is a surface mount XO oscillator with a frequency of 26 MHz.

  • Oscillator Type: XO
  • Mounting Type: Surface Mount
  • Frequency: 26 MHz
  • Standby (Power Down) Function: Yes
  • Output: CMOS
  • Frequency Stability: ±25ppm
  • Maximum Supply Current: 5mA
  • Package: 4-SMD, No Lead
  • Height: 0.028" (0.70mm)
  • Voltage Supply Range: 1.6V to 3.63V
  • Operating Temperature Range: -40°C to 85°C
  • ROHS3 Compliant: Yes
  • REACH Status: Unaffected
