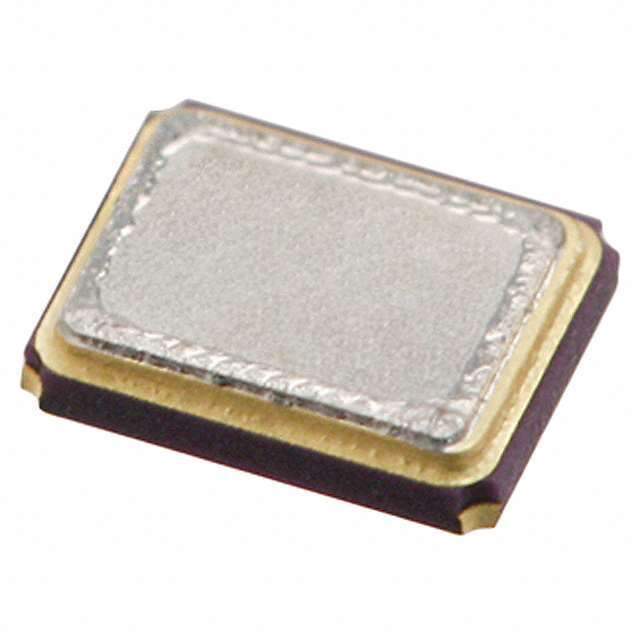

ECS-120-12-33Q-JES-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-120-12-33Q-JES-TR

Part No ECS-120-12-33Q-JES-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 12.0000MHZ 12PF SMD / 12 MHz ±20ppm Crystal 12pF 100 Ohms 4-SMD, No Lead
Datasheet
ECS-120-12-33Q-JES-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer ECS Inc.
Packaging Reel - TR
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number XC2143TR,XC2143DKR,XC2143CT
Standard Package 3,000
Win Source Part Number 1328371-ECS-120-12-33Q-JES-TR
Ultra Librarian 3D Model Ultra Librarian ECS-120-12-33Q-JES-TR CAD Model

Description

The ECS Inc. crystal is a high-quality crystal with a frequency of 12MHz.

  • Frequency: 12MHz
  • Package: 4-SMD, no lead
  • Load Capacitance: 12pF
  • Operating Temperature: -40°C to 125°C
  • Package: reel-TR
  • Mounting: Surface Mount
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Frequency Stability: ±50ppm
  • Popularity: Medium
  • REACH Affected: No
  • ROHS3 Compliant: Yes
