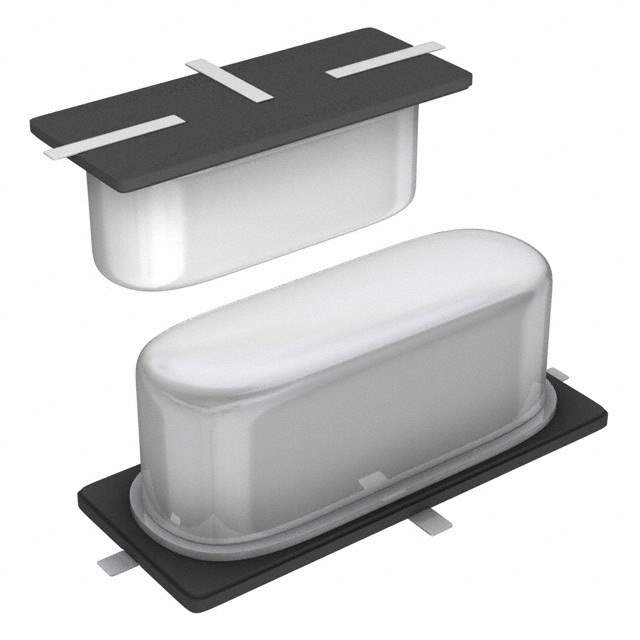

ECS-60-20-5G3XDS-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-60-20-5G3XDS-TR

Part No ECS-60-20-5G3XDS-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 6.0000MHZ 20PF SMD
Datasheet
ECS-60-20-5G3XDS-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 21 Weeks
Features 6 MHz ±30ppm Crystal 20pF 70 Ohms HC-49/US
Manufacturer ECS Inc.
Series CSM-7X-3L
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package HC-49/US
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number XC1493CT, ECS-060-20-5G3XDS-TR, ECS60205G3XDSTR, XC1493TR, ECS-60-20-5G3DS-TR, XC1493DKR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 917810-ECS-60-20-5G3XDS-TR
Ultra Librarian 3D Model Ultra Librarian ECS-60-20-5G3XDS-TR CAD Model

Description

The CSM-7X-3L series crystal is a high-performance crystal with a frequency of 6 MHz and a frequency tolerance of ±30ppm.

  • Frequency: 6 MHz
  • Frequency Tolerance: ±30ppm
  • ESR: 70 Ohms
  • Mounting: surface-mounted
  • Package Size: HC-49/US
  • Packaging: tape and reel
  • Standard Package: 1,000 units
