Same model may have multiple batches, images only for reference.

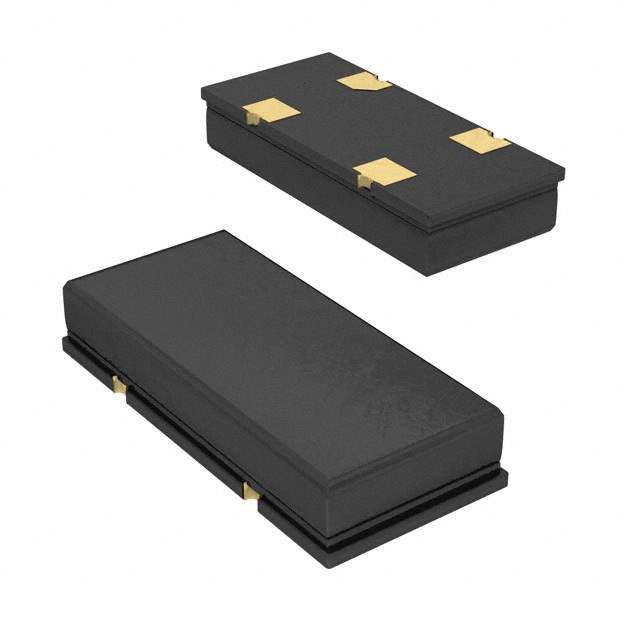

ECS-60-18-18-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-60-18-18-TR

Part No ECS-60-18-18-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 6.0000MHZ 18PF SMD / 6 MHz ±30ppm Crystal 18pF 100 Ohms 4-SMD, No Lead
Datasheet
ECS-60-18-18-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series CSM-12
Package Tape & Reel
Type MHz Crystal
Frequency 6 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.465" L x 0.217" W (11.80mm x 5.50mm)
Height - Seated (Max) 0.098" (2.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names XC1708TR,ECS601818TR,Q7930693D,XC1708DKR,XC1708CT
Standard Package 1,000
Win Source Part Number 1005530-ECS-60-18-18-TR
Ultra Librarian 3D Model Ultra Librarian ECS-60-18-18-TR CAD Model

Description

The ECS Inc. crystal with part number 1005530-ECS-60-18-18-TR is a MHz crystal that comes in a 4-SMD, No Lead package.

  • Frequency: 6 MHz
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Operating Mode: fundamental
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.465" L x 0.217" W (11.80mm x 5.50mm)
  • Ideal for: use in various electronic applications that require a stable frequency source
