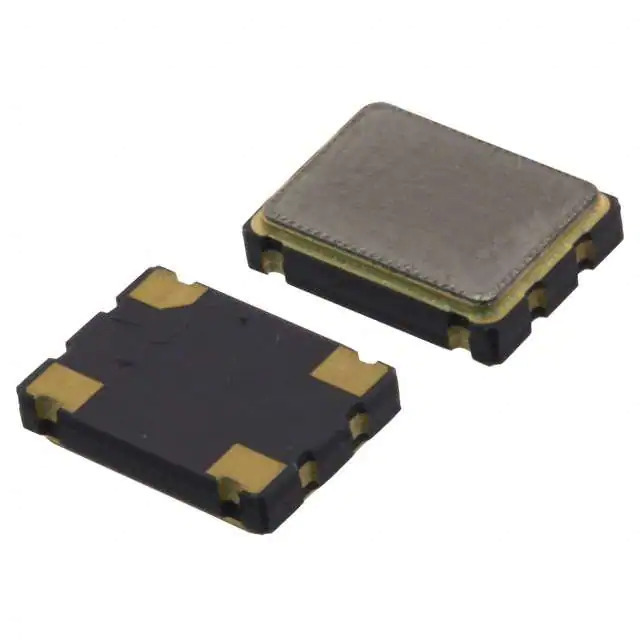

Same model may have multiple batches, images only for reference.
ECS-3953M-400-BN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-3953M-400-BN-TR

Part No ECS-3953M-400-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 40.0000MHZ HCMOS SMD
Datasheet
ECS-3953M-400-BN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECS-3953M-BN
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 40 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 25mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.067" (1.70mm)
Current - Supply (Disable) (Max) -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366439-ECS-3953M-400-BN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3953M-400-BN-TR CAD Model

Description

The ECS-3953M-400-BN-TR is a surface mount oscillator manufactured by ECS Inc.

  • Manufacturer: ECS Inc.
  • Product Series: ECS-3953M-BN
  • Package Type: Tape and Reel
  • Frequency: 40 MHz
  • Package / Case: 4-SMD, No Lead
  • Voltage Supply: 3.3V
  • Supply Current: 25mA
  • Features: Enable/Disable
  • Output: HCMOS
  • Frequency Stability: ±50ppm
