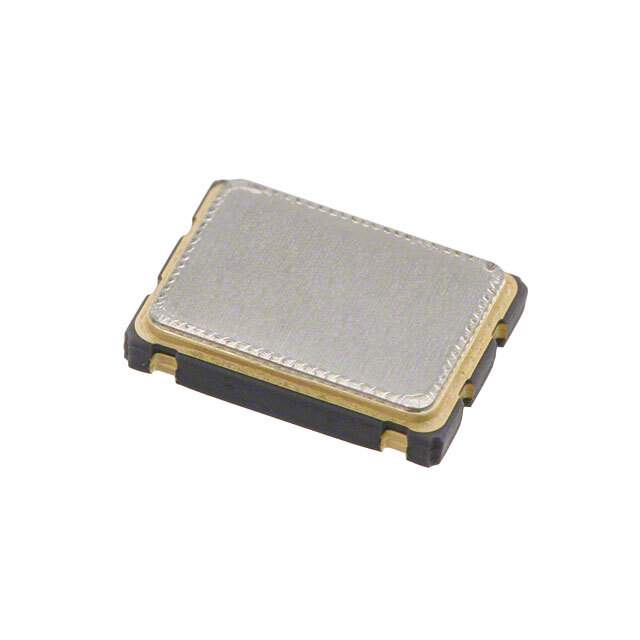

ECS-3951M-200-AU-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3951M-200-AU-TR

Part No ECS-3951M-200-AU-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description OSC XO 20.000MHZ HCMOS SMD / Oscillator XO 20MHz ±100ppm 30pF HCMOS 60% 5V Automotive 4-Pin Mini-SMD T/R
Datasheet
ECS-3951M-200-AU-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series ECS-3951M-AU
Type XO (Standard)
Frequency 20MHz
Function Enable/Disable
Output HCMOS
Operating Supply Voltage 5V
Frequency Stability ±100ppm
Operating Temperature Range -55°C ~ 125°C
Maximum Supply Current 25mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Maximum) 0.067" (1.70mm)
Win Source Part Number 770841-ECS-3951M-200-AU-TR
Popularity Medium
Supply and Demand Status Limited
Introduction Date April 08, 2008
ECCN EAR99
Country of Origin China
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ECS-3951M-200-AU-TR CAD Model

Description

The ECS-3951M-AU is a high-quality, surface-mount device.

  • Frequency: 20MHz
  • Frequency Stability: ±100ppm
  • Type: Standard XO (Crystal Oscillator)
  • Function: Enable/Disable
  • Output: HCMOS
  • Voltage Supply: 5V
  • Maximum Supply Current: 25mA
  • Package: 4-SMD, no lead
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
