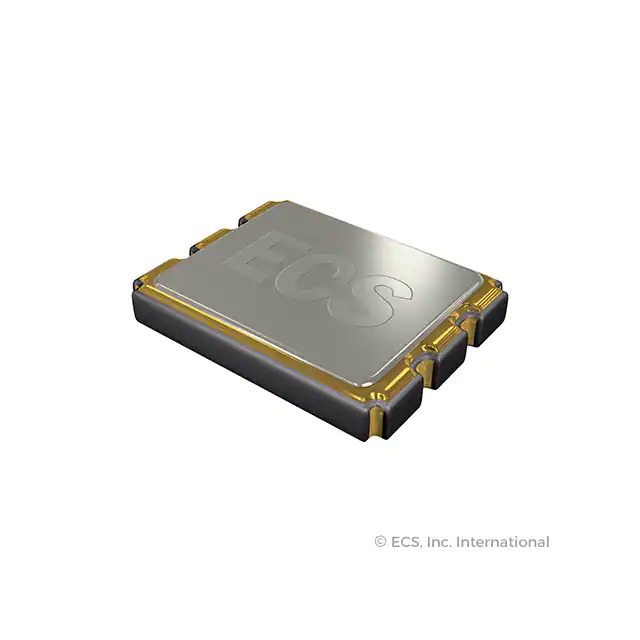

ECS-3225MVQ-240-CN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-3225MVQ-240-CN-TR

Part No ECS-3225MVQ-240-CN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 24.0000MHZ CMOS SMD
Datasheet
ECS-3225MVQ-240-CN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr ECS Inc.
Series ECS-3225MVQ MultiVolt™
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.7V ~ 3.6V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 10mA
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366441-ECS-3225MVQ-240-CN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3225MVQ-240-CN-TR CAD Model

Description

The ECS-3225MVQ-240-CN-TR is a surface mount oscillator from ECS Inc.

  • Manufacturer: ECS Inc.
  • Frequency: 24 MHz
  • Voltage Supply: 1.7V to 3.6V
  • Product Series: ECS-3225MVQ MultiVolt™
  • Package / Case: 4-SMD, No Lead
  • Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height - Seated (Max): 0.047" (1.20mm)
  • Features: Enable/Disable
  • Output: HCMOS
  • Frequency Stability: ±25ppm
  • Supply Current: 10mA
  • Operating Temperature: -40°C to 85°C
  • Automotive: AEC-Q200
