Same model may have multiple batches, images only for reference.

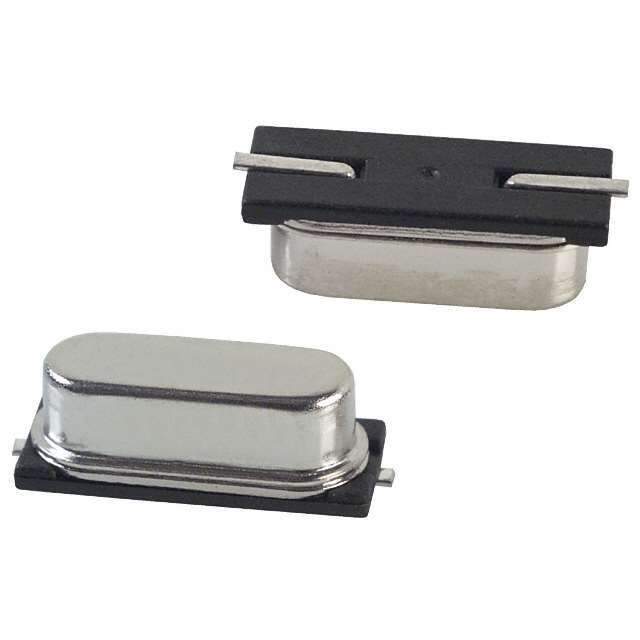

ECS-184-20-5PXDN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-184-20-5PXDN-TR

Part No ECS-184-20-5PXDN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 18.4320MHZ 20PF SMD / 18.432 MHz ±30ppm Crystal 20pF 40 Ohms HC-49/US
Datasheet
ECS-184-20-5PXDN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr ECS Inc.
Series CSM-7X-DN
Package Tape & Reel
Type MHz Crystal
Frequency 18.432 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Max) 0.169" (4.30mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Other Names XC1300TR,XC1300CT,ECS184205PXDNTR,XC1300DKR
Standard Package 1,000
Win Source Part Number 1168936-ECS-184-20-5PXDN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-184-20-5PXDN-TR CAD Model

Description

The ECS-184-20-5PXDN-TR is a MHz crystal manufactured by ECS Inc.

  • Frequency: 18.432 MHz
  • Frequency Stability: ±100ppm
  • Load Capacitance: 20pF
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Tape and Reel
