Same model may have multiple batches, images only for reference.

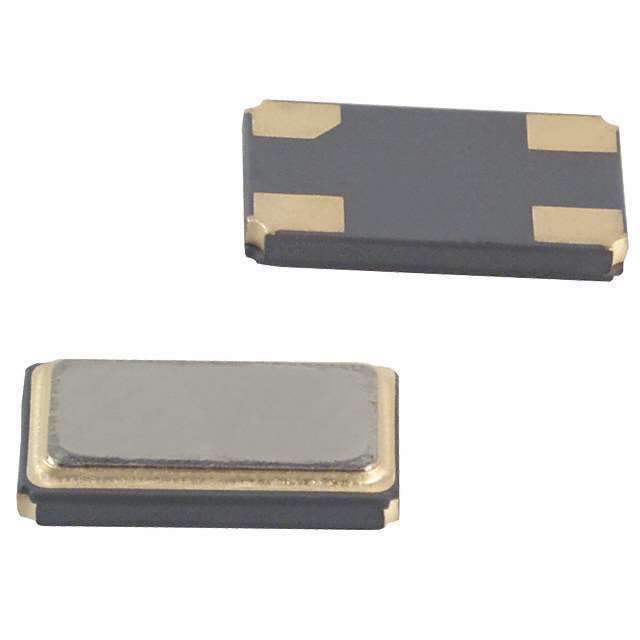

ECS-184-20-23B-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-184-20-23B-TR

Part No ECS-184-20-23B-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 18.4320MHZ 20PF SMD
Datasheet
ECS-184-20-23B-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Packaging Cut Reel
Status Active
Type MHz Crystal
Frequency 18.432MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR 40 Ohm
Operating Mode Fundamental
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Win Source Part Number 1027552-ECS-184-20-23B-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECS-184-20-23B-TR CAD Model

Description

The ECS Inc. 1027552-ECS-184-20-23B-TR is a MHz Crystal designed for use in various electronic devices.

  • Frequency: 18.432MHz
  • Frequency Stability: ±50ppm
  • Mode: Fundamental
  • Load Capacitance: 20pF
  • Packaging: Cut Reel
  • Mounting Type: Surface Mount
  • Supply and Demand Status: Balance
  • Temperature Range: -10°C to 70°C
