Same model may have multiple batches, images only for reference.

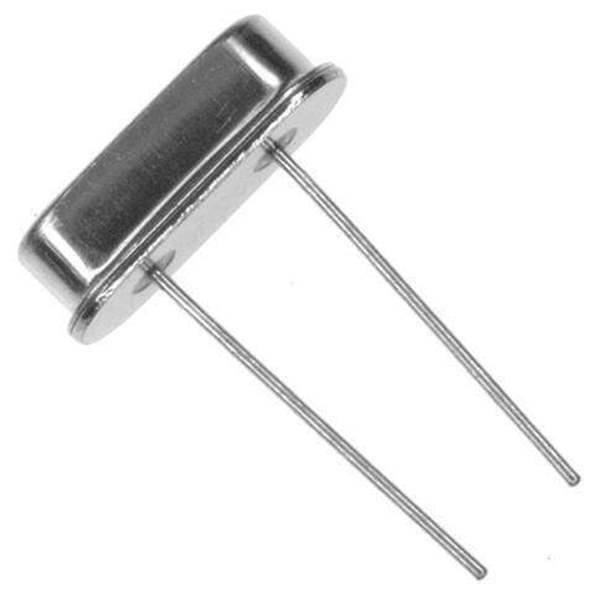

ECS-147.4-20-4XECS Inc.
Same model may have multiple batches, images only for reference.

ECS-147.4-20-4X

Part No ECS-147.4-20-4X
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 14.7456MHZ 20PF TH
Datasheet
ECS-147.4-20-4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Packaging Bulk
Part Status Active
Type MHz Crystal
Frequency 14.7456 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Operating Temperature -10°C ~ 70°C
Mounting Type Through Hole
Win Source Part Number WS1304776-ECS-147.4-20-4X
Ultra Librarian 3D Model Ultra Librarian ECS-147.4-20-4X CAD Model

Description

The HC-49USX is the low profile resistance weld type Thru Hole quartz crystal.
