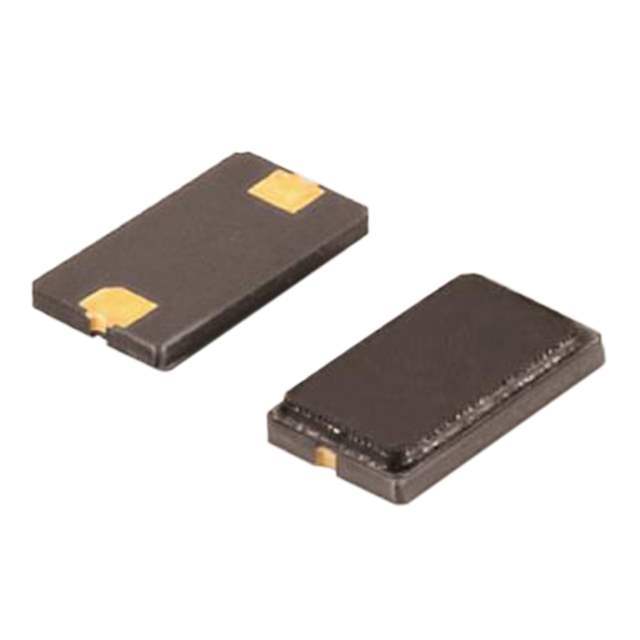

Same model may have multiple batches, images only for reference.
ECS-120-18-23G-JGN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-120-18-23G-JGN-TR

Part No ECS-120-18-23G-JGN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD
Datasheet
ECS-120-18-23G-JGN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1205926-ECS-120-18-23G-JGN-TR
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators- Crystals
Series ECS-23G
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type MHz Crystal
Frequency 12 MHz
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Ultra Librarian 3D Model Ultra Librarian ECS-120-18-23G-JGN-TR CAD Model

Description

• Low Profile •
6.0 x 3.5 mm Footprint
• Extended Temp. Range
• RoHS Compliant
