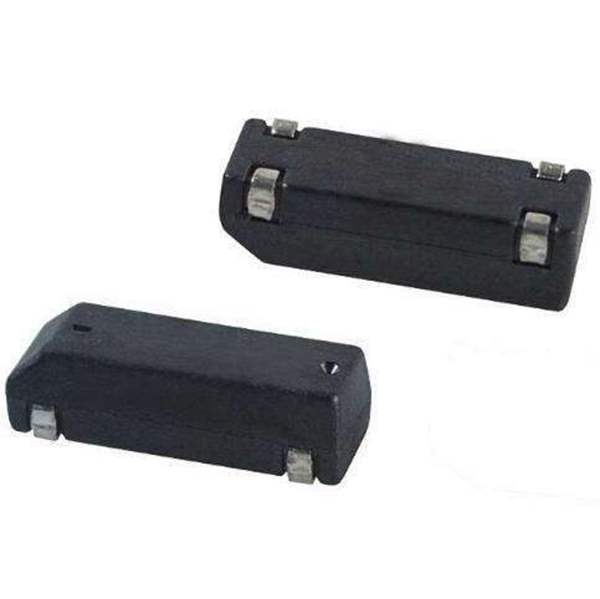

ECS-110.5-20-7SX-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-110.5-20-7SX-TR

Part No ECS-110.5-20-7SX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 11.0592MHZ 20PF SMD
Datasheet
ECS-110.5-20-7SX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Crystals
Part Status Not For New Designs
Type MHz Crystal
Frequency 11.0592 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Operating Temperature -10°C ~ 70°C
Mounting Type Surface Mount
Size / Dimension 0.492" L x 0.181" W (12.50mm x 4.60mm)
Win Source Part Number WS1304811-ECS-110.5-20-7SX-TR
Ultra Librarian 3D Model Ultra Librarian ECS-110.5-20-7SX-TR CAD Model

Description

The wide frequency range SMD quartz crystal is an excellent choice for surface mount applications. The moulded package is made from the same thermoplastic that is an industry standard for integrated circuits.
