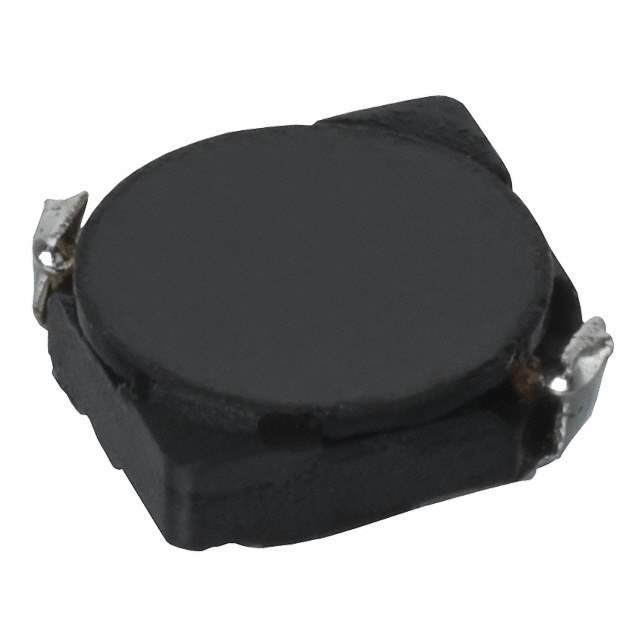

The CDRH5D18-100 is a fixed inductor manufactured by ECM Electronics Limited. It is designed for various power supply and filtering applications where a compact and reliable inductor is required. This inductor is part of the CDRH5D18 series, known for its shielded construction and excellent performance characteristics.

Applications


• DC-DC converters

• Power supplies

• Filtering circuits

• Voltage regulators

• LED lighting

Features


• Shielded construction for low EMI

• Compact size

• High current capacity

• Low DC resistance

• RoHS compliant

Benefits


• Reduced electromagnetic interference, ensuring compliance with EMC regulations.

• Space-saving design, ideal for compact electronic devices.

• Efficient power handling due to low DC resistance.

• Reliable performance in demanding applications.

• Environmentally friendly due to RoHS compliance.

Technical Specifications

While specific electrical characteristics (inductance, tolerance, saturation current, etc.) can vary, the CDRH5D18 series generally features:


• Inductance values ranging from a few microhenries to several hundred microhenries.

• Tolerance typically around ±20%.

• Operating temperature range between -25°C and +85°C.

Please refer to the manufacturer's datasheet for precise specifications for the CDRH5D18-100 part number.

The shielded construction minimizes electromagnetic interference (EMI), making it suitable for use in sensitive electronic circuits. The CDRH5D18-100 is constructed with high-quality materials and undergoes rigorous testing to ensure reliability and long-term performance. Its compact size allows for easy integration into space-constrained applications, while its high current capacity enables it to handle significant power levels without compromising performance.
