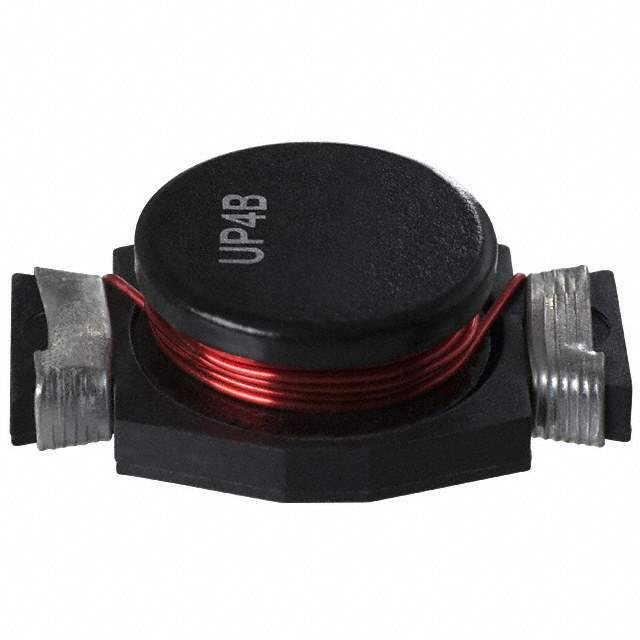

UP4B-3R3-R Real Image1 UP4B-3R3-R Real Image2
Same model may have multiple batches, images only for reference.
UP4B-3R3-R Real Image1 UP4B-3R3-R Real Image2
UP4B-3R3-R Real Image1 UP4B-3R3-R Real Image2
Same model may have multiple batches, images only for reference.

UP4B-3R3-R

Part No UP4B-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 11A 5.7 MOHM SMD / 3.3 µH Unshielded Drum Core, Wirewound Inductor 11 A 5.7mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton Bussmann
Series UNI-PAC™
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 11 A
Current - Saturation (Isat) 20.2A
Shielding Unshielded
DC Resistance (DCR) 5.7mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.870" L x 0.591" W (22.10mm x 15.00mm)
Height - Seated (Max) 0.310" (7.87mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 275 pcs
Win Source Part Number 1383794-UP4B-3R3-R
Ultra Librarian 3D Model Ultra Librarian UP4B-3R3-R CAD Model

Description

The UP4B-3R3-R is a fixed inductor in a nonstandard package from Eaton Bussmann.

  • Series: UNI-PAC™
  • Core Type: Drum core, wirewound
  • Shielding: Unshielded
  • Inductance: 3.3µH
  • Tolerance: ±20%
  • DC Resistance: 5.7mOhm
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 85°C
  • Standard Package: 275 pcs
