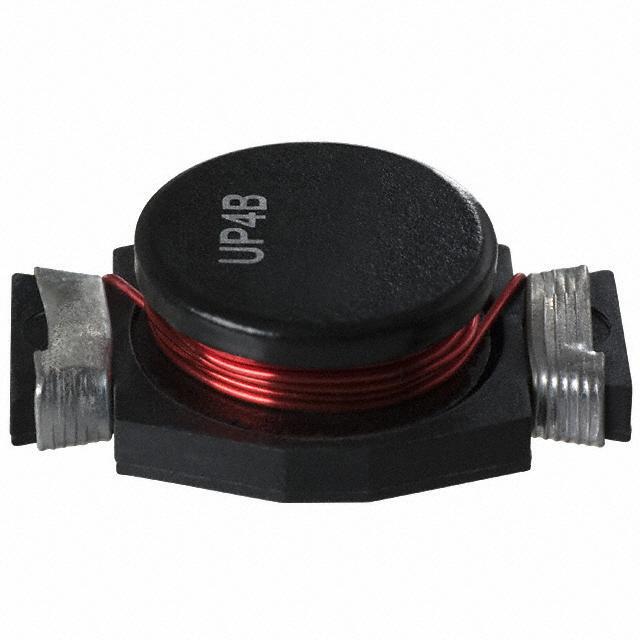

UP4B-150-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

UP4B-150-R

Part No UP4B-150-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 15UH 5.5A 23 MOHM SMD / Inductor Power Wirewound 15.61uH/15uH 20% 100KHz Ferrite 5.5A 0.023Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series UNI-PAC
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 15μH
Tolerance ±20%
Current Rating 5.5A
Current - Saturation 9.1A
Shielding Unshielded
DC Resistance (DCR) 23 mOhm Max
Operating Temperature Range -40°C ~ 85°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.870" L x 0.590" W (22.10mm x 15.00mm)
Height - Seated (Maximum) 0.310" (7.87mm)
Win Source Part Number 798820-UP4B-150-R
Popularity Medium
Supply and Demand Status Limited
Family Name UP4B
Introduction Date August 09, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UP4B-150-R CAD Model

Description

The Eaton UNI-PAC series UP4B-150-R is a nonstandard packaged wirewound inductor with an inductance of 15μH and a current rating of 5.5A. Eaton

  • Material: Ferrite
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Type: SMD
  • Shielding: Unshielded
  • DC Resistance (DCR): 23 mOhm Max
  • Current Saturation: 9.1A
  • Dimension: 0.870" L x 0.590" W (22.10mm x 15.00mm)
  • Height Seated (maximum): 0.310" (7.87mm)
  • Halogen-Free Compliant: Yes
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
