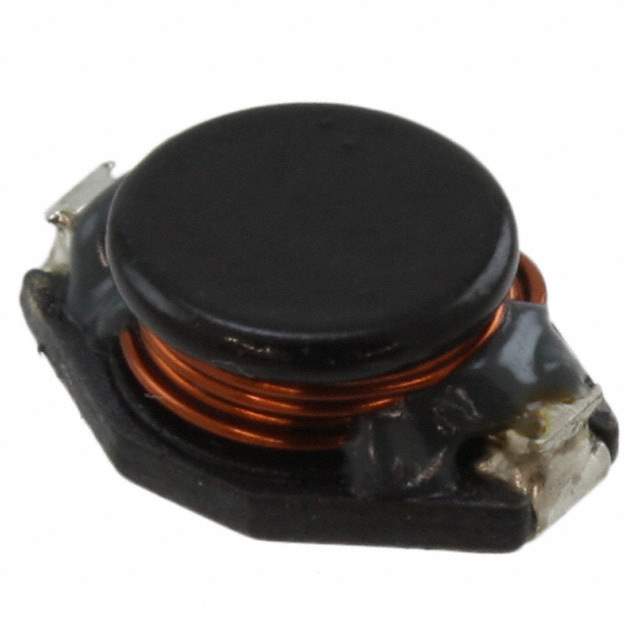

UP2UC-3R3-R Real Image
Same model may have multiple batches, images only for reference.

UP2UC-3R3-R

Part No UP2UC-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 5.4A 15 MOHM SMD / 3.3 µH Unshielded Wirewound Inductor 5.4 A 15mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Wirewound
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 5.4 A
Current - Saturation (Isat) 6.4A
Shielding Unshielded
DC Resistance (DCR) 15mOhm Max
Frequency - Self Resonant 65MHz
Temperature Range - Operating -25°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.205" (5.21mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number UP2UC-3R3,UP2UC-3R3-ND
Standard Package 600
Win Source Part Number 1327466-UP2UC-3R3-R
Ultra Librarian 3D Model Ultra Librarian UP2UC-3R3-R CAD Model

Description

This is a fixed inductor from Eaton - Electronics Division with a Win Source Part Number of 1327466-UP2UC-3R3-R.

  • Packaging: Reel - TR
  • Shielding: Unshielded
  • Type: Wirewound
  • Size / Dimension: 0.500" L x 0.394" W (12.70mm x 10.00mm)
  • Inductance: 3.3 µH
  • Height - Seated (max): 0.205" (5.21mm)
  • Standard Package: 600
  • Mounting: Surface Mount
  • Tolerance: ±20%
  • Material - Core: Not Specified
  • Q @ Freq: Not Specified
  • Frequency - Self Resonant: 65MHz
  • DC Resistance (DCR): 15mOhm Max
  • Case / Package: Nonstandard
  • ECCN: EAR99
  • Current Rating (amps): 5.4 A
  • Inductance Frequency - Test: 100 kHz
  • HTSUS: 8504.50.4000
  • Current - Saturation (Isat): 6.4A
  • RoHS Compliant: Yes
