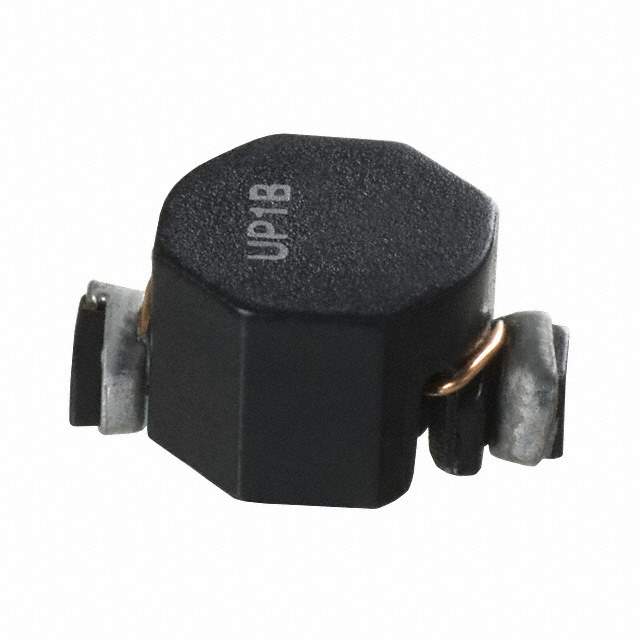

UP1B-470-R Real Image
Same model may have multiple batches, images only for reference.

UP1B-470-R

Part No UP1B-470-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 47UH 720MA 474 MOHM / Inductor Power Wirewound 48.5uH/47uH 20% 100KHz Ferrite 0.72A 0.474Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series UNI-PAC
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 720mA
Current - Saturation 870mA
Shielding Unshielded
DC Resistance (DCR) 474 mOhm Max
Operating Temperature Range -40°C ~ 85°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.350" L x 0.240" W (8.89mm x 6.10mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 798819-UP1B-470-R
Popularity Medium
Supply and Demand Status Balance
Family Name UP1B
Introduction Date August 09, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UP1B-470-R CAD Model

Description

The Eaton UNI-PAC 798819-UP1B-470-R is a wirewound inductor with a non-standard package. Eaton

  • Operating Temperature Range: -40°C to 85°C
  • Shielding: Unshielded
  • Inductance: 47μH
  • Tolerance: ±20%
  • Current Rating: 720mA
  • Current Saturation: 870mA
  • DC Resistance (DCR): 474 mOhm Max
  • Dimension: 0.350" L x 0.240" W (8.89mm x 6.10mm)
  • Height - Seated (maximum): 0.197" (5.00mm)
  • Supply and Demand Status: Balanced
  • Alternative Parts: Available
