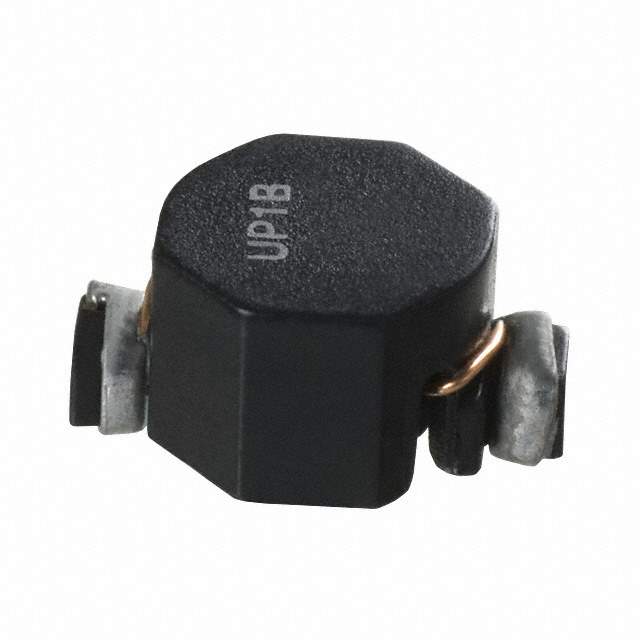

UP1B-3R3-R Real Image
Same model may have multiple batches, images only for reference.

UP1B-3R3-R

Part No UP1B-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.9A 42.8 MOHM
Datasheet
UP1B-3R3-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 2.9A
Current - Saturation 3A
DC Resistance (DCR) 42.8 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 123719-UP1B-3R3-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UP1B-3R3-R CAD Model

Description

The Eaton Bussmann UP1B-3R3-R is a wirewound type inductor that has an inductance of 3.3μH and a current rating of 2.9A.

  • Inductance: 3.3μH
  • Current Rating: 2.9A
  • Height: 0.197" (5.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 42.8 mOhm Max
  • Current-Saturation: 3A
  • Frequency range for self-resonant: not specified
  • Frequency range for test: 100kHz
  • Core Material: ferrite
  • Packaging: reel - TR
  • Device: surface-mount device (SMD)
  • Category: inductor, coil, choke
  • Temperature Range: -40°C to 85°C
  • Popularity: medium
  • Supply and Demand: balance
