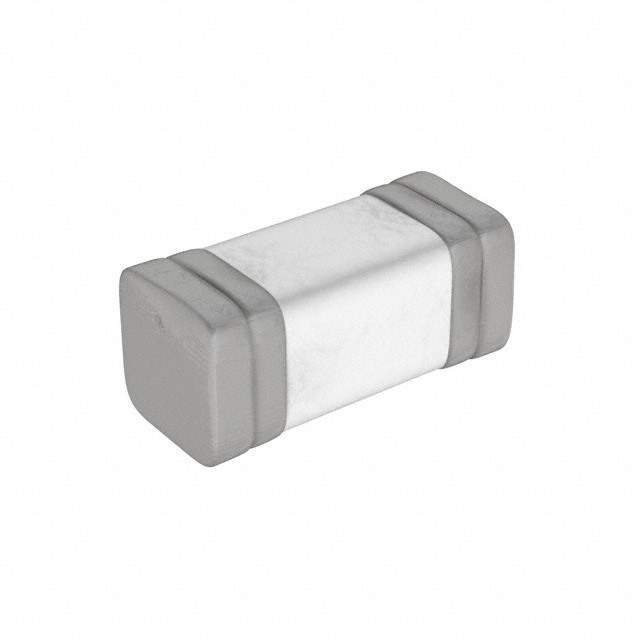

TR2/6125FF12-R Real Image
Same model may have multiple batches, images only for reference.

TR2/6125FF12-R

Part No TR2/6125FF12-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 12A 125VAC 72VDC
Datasheet
TR2/6125FF12-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 12A
Voltage Rating - AC 125V
Voltage Rating - DC 72V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 210.59
Approvals cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0053 Ohm
Win Source Part Number 1113944-TR2/6125FF12-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR2/6125FF12-R CAD Model

Description

The Eaton Board Mount Fuse is a cartridge-style fuse with a current rating of 12A and a voltage rating of 125V (AC) and 72V (DC).

  • Response Time: fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Mounting: SMD (SMT) technology
  • Operating Temperature Range: -55°C to 125°C
  • Nominal Melting - I2t: 210.59
  • Nominal Cold Resistance: 0.0053 Ohm
  • Approval: cULus
  • Packaging: reel-TR
