Same model may have multiple batches, images only for reference.

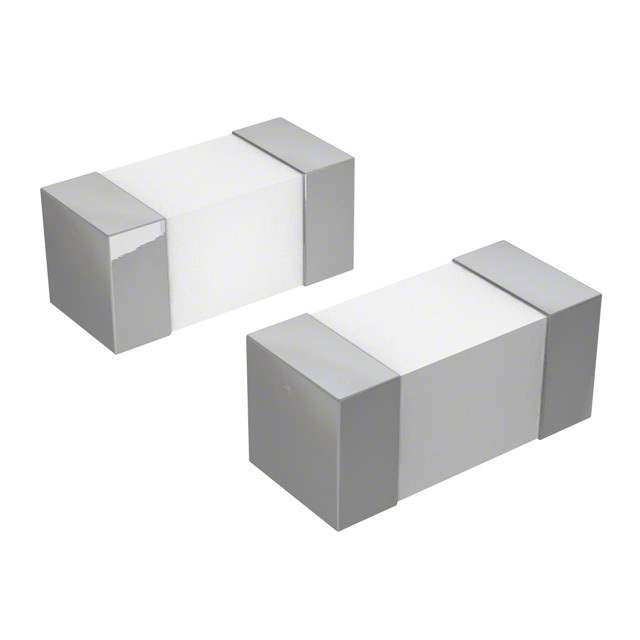

TR1/6125TD7A Real Image
Same model may have multiple batches, images only for reference.

TR1/6125TD7A

Part No TR1/6125TD7A
Manufacturer Eaton Bussmann
Catalog Fuses
Description Fuse Chip Slow Blow Acting 7A 125V SMD Solder Pad 2410 T/R CSA/UL / FUSE BRD MNT 7A 125VAC 60VDC SMD
Datasheet
TR1/6125TD7A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 7A
Voltage Rating - AC 125V
Voltage Rating - DC 60V
Response Time Slow
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 90.2
Approvals CSA, UL
Nominal Cold Resistance 0.0087 Ohm
Win Source Part Number 213483-TR1/6125TD7A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 6125TD
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TR1/6125TD7A CAD Model

Description

The Eaton Bussmann 213483-TR1/6125TD7A is a slow response board mount fuse that is ideal for circuit protection.

  • Current Rating: 7A
  • Voltage Rating: 125V AC and 60V DC
  • Breaking Capacity: 50A @ rated voltage
  • Approvals: CSA and UL
  • Mounting: SMD (SMT) technology
  • Family Name: 6125TD
  • Alternative Parts: 6125TD7A, SP2/6125TD7A, TR2/6125TD7A, and TR3/6125TD7A
  • Nominal Melting I2t: 90.2
  • Nominal Cold Resistance: 0.0087 Ohm
  • Product Status: obsolete
  • Popularity: high
