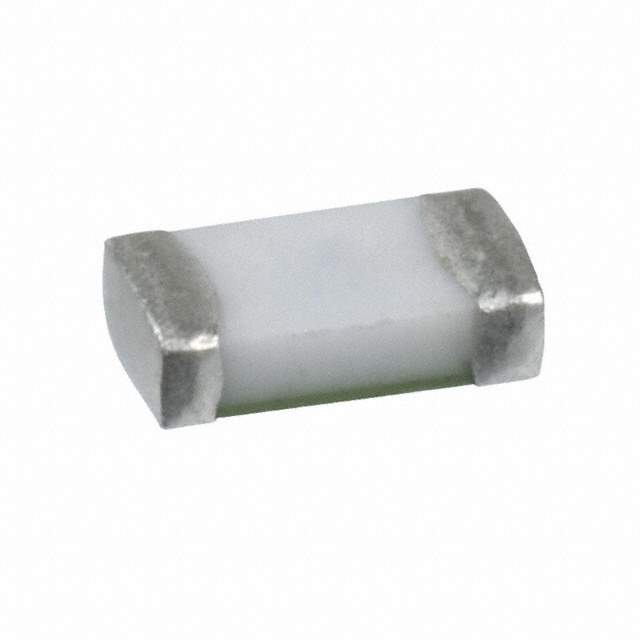

TR/3216FF-3A Real Image
Same model may have multiple batches, images only for reference.

TR/3216FF-3A

Part No TR/3216FF-3A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 3A 32VAC 63VDC 1206
Datasheet
TR/3216FF-3A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3A
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.426
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.036 Ohm
Win Source Part Number 048289-TR/3216FF-3A
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TR/3216FF-3A CAD Model

Description

The Eaton Bussmann 048289-TR/3216FF-3A is a board mount fuse designed for circuit protection applications.

  • Current Rating: 3A
  • Voltage Rating: 32V AC and 63V DC
  • Response Time: fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Approvals: CSA and UL
  • Nominal Cold Resistance: 0.036 Ohm
  • Nominal Melting - I2t: 0.426
  • Temperature Range: -55°C to 125°C
  • Mounting: SMD (SMT) technology
  • Category: circuit protection
  • Supply and Demand Status: sufficient
