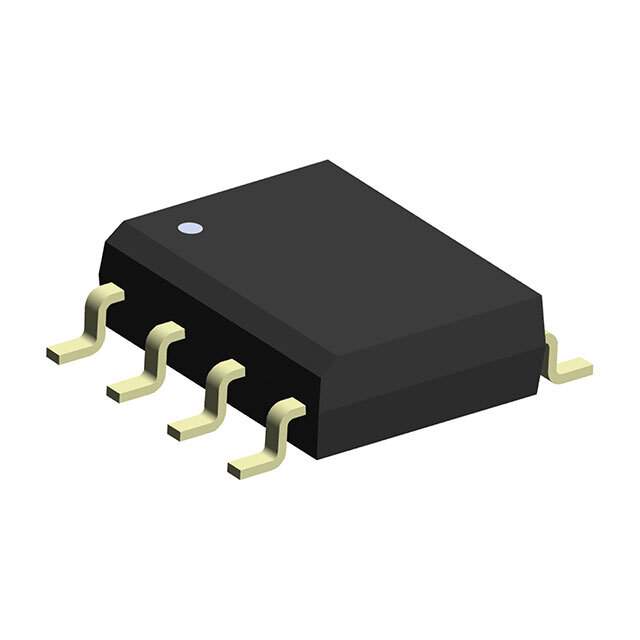

STSP84150B601 Real Image
Same model may have multiple batches, images only for reference.

STSP84150B601

Part No STSP84150B601
Manufacturer Eaton Bussmann
Catalog TVS - Diodes
Description TVS DIODE 15VWM 30VC 8-SOP / 30V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount 8-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Eaton - Electronics Division
Series BUSSMANN
Package Tape & Reel
Type Zener
Bidirectional Channels 4
Voltage - Reverse Standoff (Typ) 15V (Max)
Voltage - Breakdown (Min) 16.5V
Voltage - Clamping (Max) @ Ipp 30V
Current - Peak Pulse (10/1000µs) 12A (8/20µs)
Power - Peak Pulse 300W
Power Line Protection No
Applications Ethernet
Capacitance @ Frequency 60pF @ 1MHz (Max)
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1349682-STSP84150B601
Ultra Librarian 3D Model Ultra Librarian STSP84150B601 CAD Model

Description

This is a TVS diode from Eaton - Electronics Division with a Win Source Part Number of 1349682-STSP84150B601.

  • Series: BUSSMANN
  • Type: Zener
  • Package: Tape & Reel
  • Application: Ethernet
  • Standard Package: 2,500
  • Channels: 4 Bidirectional
  • Voltage - Reverse Standoff (Typ): 15V (Max)
  • Voltage - Breakdown (Min): 16.5V
  • Power - Peak Pulse: 300W
  • Power Line Protection: No
  • Capacitance @ Frequency: 60pF @ 1MHz (Max)
  • Current - Peak Pulse (10/1000µs): 12A (8/20µs)
  • Mounting: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOP
  • Temperature Range - Operating: -55°C ~ 125°C (TJ)
  • MSL Level: 3 (168 Hours)
  • HTSUS: 8541.10.0080
  • Voltage - Clamping (Max) @ Ipp: 30V
