Same model may have multiple batches, images only for reference.

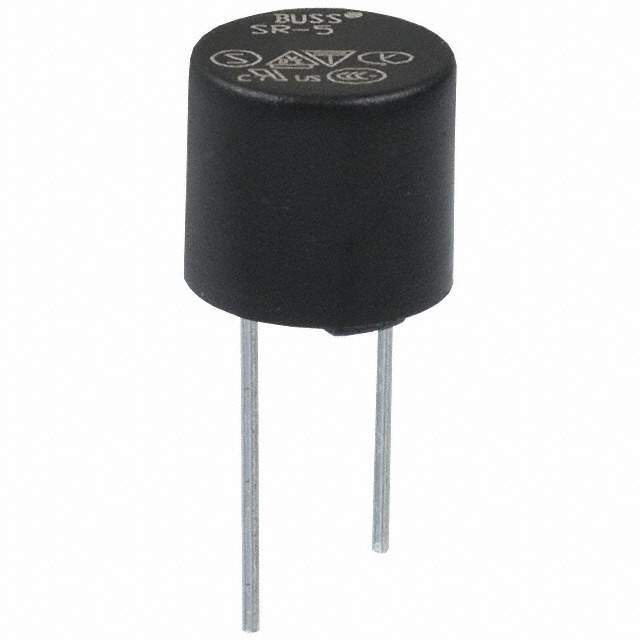

SR-5-100MA-AP Real Image
Same model may have multiple batches, images only for reference.

SR-5-100MA-AP

Part No SR-5-100MA-AP
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 100MA 250VAC RADIAL
Datasheet
SR-5-100MA-AP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging AMMO PACKAGE
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 100mA
Voltage Rating - AC 250V
Response Time Slow
Mounting Through Hole
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 0.015155
Approvals CCC, cULus, KC-MARK, SEMKO, VDE
Temperature Range - Operating -40°C to 85°C
Nominal Cold Resistance 2.37 Ohm
Win Source Part Number 141061-SR-5-100MA-AP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SR-5-100MA-AP CAD Model

Description

The Eaton Bussmann 141061-SR-5-100MA-AP electronic component is a board mount fuse type product with a slow response time.

  • Product Category: Circuit protection
  • Supply Status: Limited
  • Approvals: CCC, cULus, KC-MARK, SEMKO, and VDE
  • Mounting Type: Through-hole
  • Breaking Capacity: 35A @ rated voltage
  • Nominal Melting I2t: 0.015155
  • Nominal Cold Resistance: 2.37 Ohm
  • Operating Temperature Range: -40°C to 85°C
