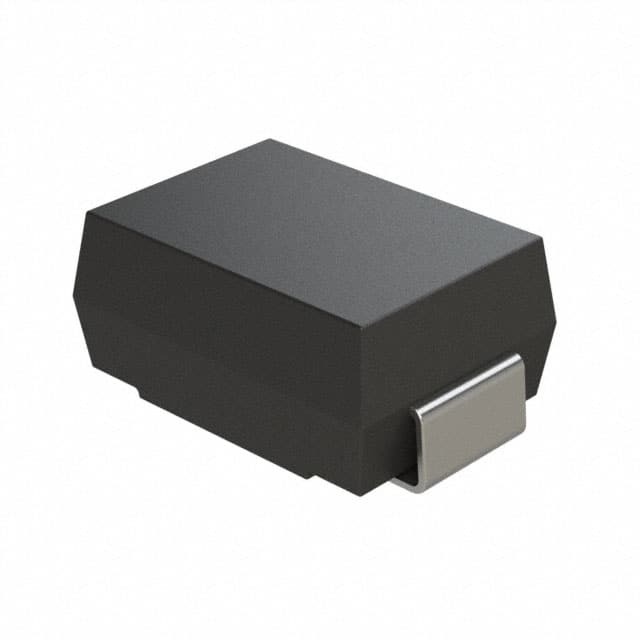

SMCP2300SC Eaton Bussmann
Same model may have multiple batches, images only for reference.

SMCP2300SC

Part No SMCP2300SC
Manufacturer Eaton Bussmann
Catalog TVS - Thyristors
Description THYRISTOR 190V 400A DO214AA  /  190V Off-State 400 A Ipp TVS Thyristor DO-214AA, SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Thyristors
Mfr Eaton - Electronics Division
Series SMCP
Package Tape & Reel (TR)
Voltage - Breakover 260V
Voltage - Off State 190V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 400 A
Current - Peak Pulse (10/1000µs) 100 A
Current - Hold (Ih) 120 mA
Number of Elements 1
Capacitance 40pF
Mounting SMD (SMT)
Package / Case DO-214AA, SMB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Other Names 283-SMCP2300SCTR
Standard Package 3,000
Win Source Part Number 1052954-SMCP2300SC
Ultra Librarian 3D Model Ultra Librarian SMCP2300SC CAD Model

Description

The Eaton - Electronics Division 1052954-SMCP2300SC is a TVS-thyristor that comes in tape and reel packaging.

  • Capacitance: 40pF
  • Voltage Rating: 190V
  • Voltage Breakover: 260V
  • On-State Voltage: 4V
  • Current Rating: 100 A peak pulse (10/1000µs) and 400 A peak pulse (8/20µs)
  • Number of Elements: 1
  • Current Hold (Ih): 120 mA
  • Approved By: 283-SMCP2300SCTR
  • HTSUS: 8541.30.0080 compliant
