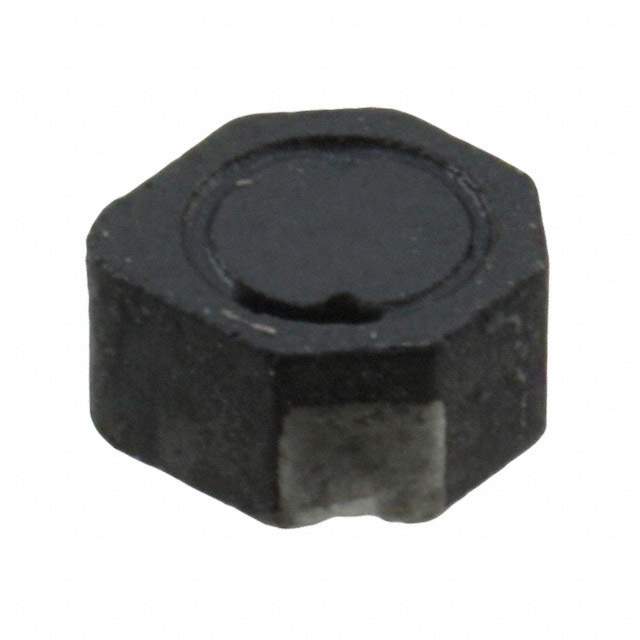

SD3118-2R2-R Real Image
Same model may have multiple batches, images only for reference.

SD3118-2R2-R

Part No SD3118-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.5A 74 MOHM SMD
Datasheet
SD3118-2R2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 1.5A
Current - Saturation 2A
DC Resistance (DCR) 74 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 042552-SD3118-2R2-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD3118-2R2-R CAD Model

Description

The Eaton Bussmann 042552-SD3118-2R2-R is a wirewound inductor with a 2.2μH inductance and a current rating of 1.5A.

  • Inductance: 2.2μH
  • Current Rating: 1.5A
  • Core Material: ferrite
  • Tolerance: ±30%
  • DC Resistance: 74 mOhm
  • Height Seated: 0.071' (1.80mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 125°C
  • Current Saturation: 2A
  • Frequency Test: 100kHz
