Same model may have multiple batches, images only for reference.

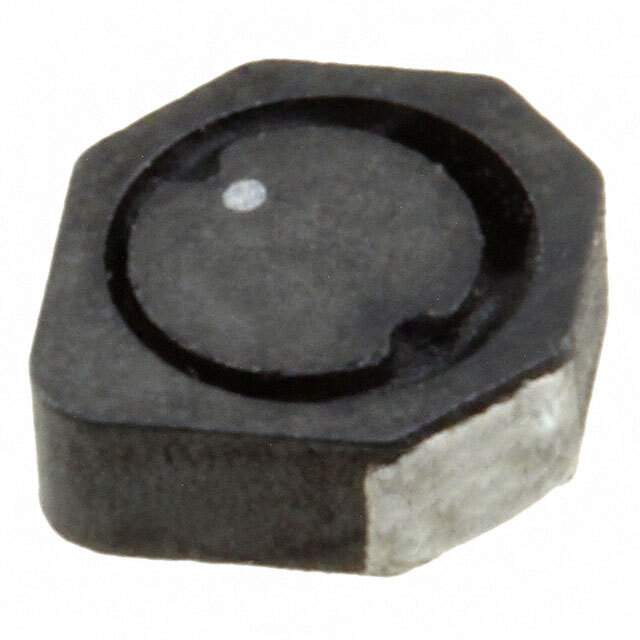

SD3112-330-R Real Image
Same model may have multiple batches, images only for reference.

SD3112-330-R

Part No SD3112-330-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 33UH 300MA 1.48OHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 300 mA 1.48Ohm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD3112
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 300mA
Shielding Shielded
DC Resistance (DCR) 1.48Ohm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.122" L x 0.122" W (3.10mm x 3.10mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 4,100
Win Source Part Number 1123112-SD3112-330-R
Ultra Librarian 3D Model Ultra Librarian SD3112-330-R CAD Model

Description

The SD3112-330-R is a drum core, wirewound inductor with a shielding feature.

  • Inductance: 33 µH
  • Tolerance: ±20%
  • Package: Tape & Reel (TR)
  • Seated Height: 0.047" (1.20mm)
  • Standard Package: 4,100 units
  • Mounting Technology: Surface Mount Device (SMD)
  • Core Material: Ferrite
  • DC Resistance (DCR): 1.48 Ohm
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.122" L x 0.122" W (3.10mm x 3.10mm)
  • Manufacturer: Eaton - Electronics Division
  • Current Rating: 300 mA
