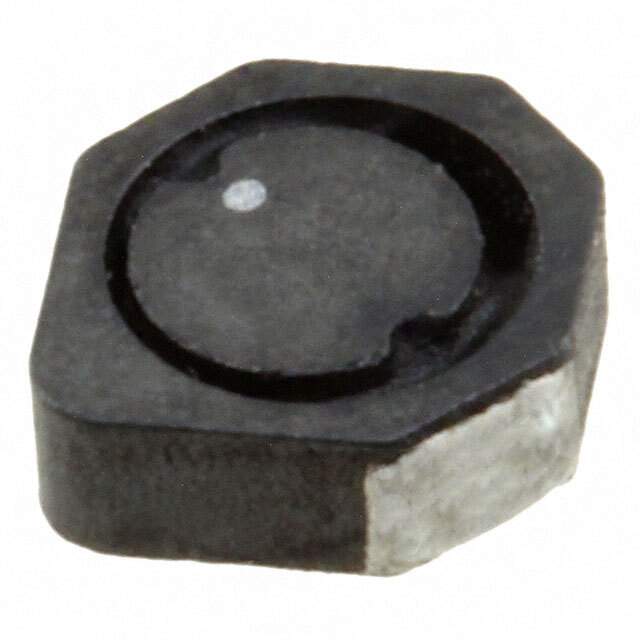

SD3112-2R2-R Real Image
Same model may have multiple batches, images only for reference.

SD3112-2R2-R

Part No SD3112-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 970MA 140 MOHM / Inductor Power Shielded Drum Core 2.41uH/2.2uH 30% 100KHz Ferrite 0.97A 0.14Ohm DCR 1212 T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series SD3112
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±30%
Current Rating 970mA
Current - Saturation 1.12A
Shielding Shielded
DC Resistance (DCR) 140 mOhm
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.122" L x 0.122" W (3.10mm x 3.10mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 794029-SD3112-2R2-R
Popularity Medium
Supply and Demand Status Balance
Family Name SD3112
Introduction Date April 07, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SD3112-2R2-R CAD Model

Description

The MOC3051SVM from Fairchild/ON Semiconductor is a high-quality optocoupler designed for use in various electronic applications.

  • Output Type: Triac
  • Voltage - Off State: 600V
  • Maximum Voltage: 32 V
  • Maximum Current: 50 mA
  • Compliance: RoHS
  • Temperature Range: -40°C to 85°C
