Same model may have multiple batches, images only for reference.

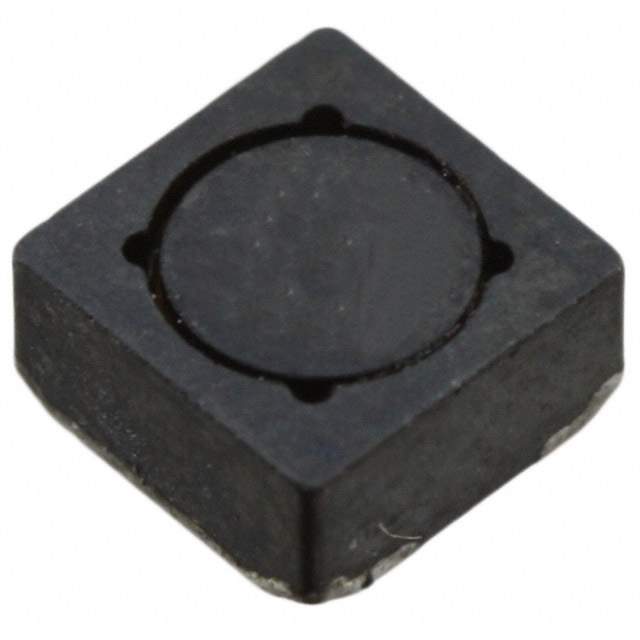

SD25-R47 Real Image
Same model may have multiple batches, images only for reference.

SD25-R47

Part No SD25-R47
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 470NH 3.88A 17.7 MOHM
Datasheet
SD25-R47 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 470nH
Tolerance ±20%
Current Rating 3.88A
Current - Saturation 6A
DC Resistance (DCR) 17.7 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.098" (2.50mm)
Win Source Part Number 046802-SD25-R47
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SD25-R47 CAD Model

Description

The Eaton Bussmann 046802-SD25-R47 is a wirewound inductor with a current rating of 3.88A and an inductance of 470nH.

  • Current Rating: 3.88A
  • Inductance: 470nH
  • Height: 0.098" (2.50mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: ferrite
  • Current Saturation: 6A
  • Frequency Test: 100kHz
  • DC Resistance (DCR): 17.7 mOhm
  • Temperature Range: -40°C to 85°C
