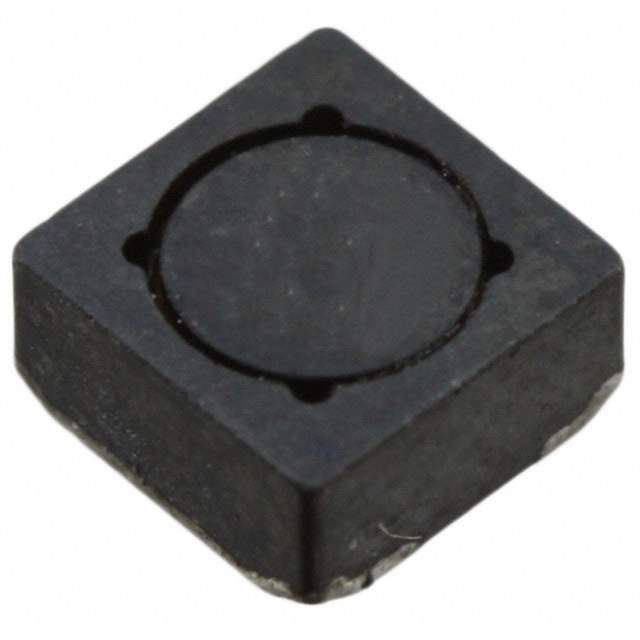

Same model may have multiple batches, images only for reference.

SD25-220-R

Name: SD25-220-R
Brand: Eaton Bussmann
SKU: 317141
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SD25-220-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.34A 147.8 MOHM
Datasheet	SD25-220-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton Bussmann
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22μH
Tolerance	±20%
Current Rating	1.34A
Current - Saturation	857mA
DC Resistance (DCR)	147.8 mOhm
Temperature Range - Operating	-40°C to 85°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.098" (2.50mm)
Win Source Part Number	111493-SD25-220-R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SD25-220-R CAD Model

Alternative Products

Description

The Eaton Bussmann 111493-SD25-220-R is a wirewound inductor with a current rating of 1.34A and an inductance of 22μH.

Current Rating: 1.34A
Inductance: 22μH
Core Material: ferrite
Tolerance: ±20%
Mounting: SMD (SMT)
DC Resistance (DCR): 147.8 mOhm
Current Saturation: 857mA
Frequency Test: 100kHz
Temperature Range: -40°C to 85°C
