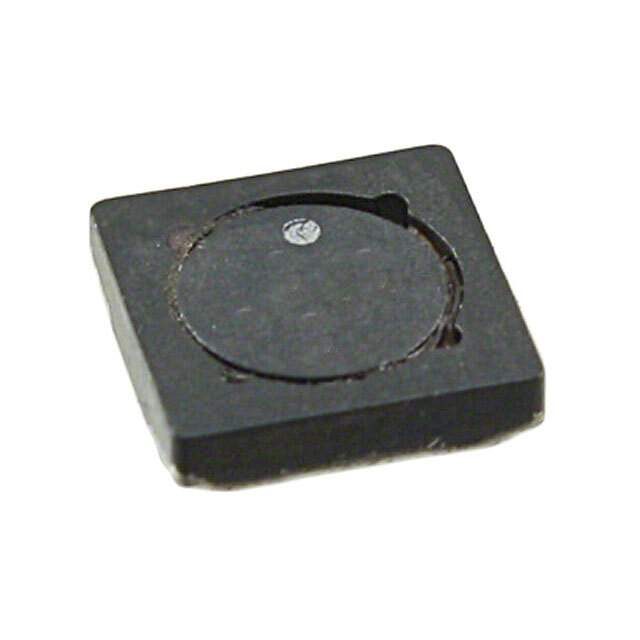

SD12-6R2-R Real Image
Same model may have multiple batches, images only for reference.

SD12-6R2-R

Part No SD12-6R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 6.2UH 1.21A 169.9 MOHM / 6.2 µH Shielded Drum Core, Wirewound Inductor 1.21 A 169.9mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.2 µH
Tolerance ±20%
Current Rating (Amps) 1.21 A
Current - Saturation (Isat) 1.08A
Shielding Shielded
DC Resistance (DCR) 169.9mOhm
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names SD12-6R2,SD12-6R2-ND
Standard Package 3,800
Win Source Part Number 968454-SD12-6R2-R
Ultra Librarian 3D Model Ultra Librarian SD12-6R2-R CAD Model

Description

The SD12-6R2-R is a fixed inductor manufactured by Eaton - Electronics Division.

  • Inductance: 6.2 µH
  • Maximum Current Rating: 1.21A
  • Core Construction: Shielded drum core
  • Winding Type: Wirewound
  • Package/Case: Nonstandard
  • Mounting Technology: SMD (SMT)
  • Manufacturer: Eaton - Electronics Division
