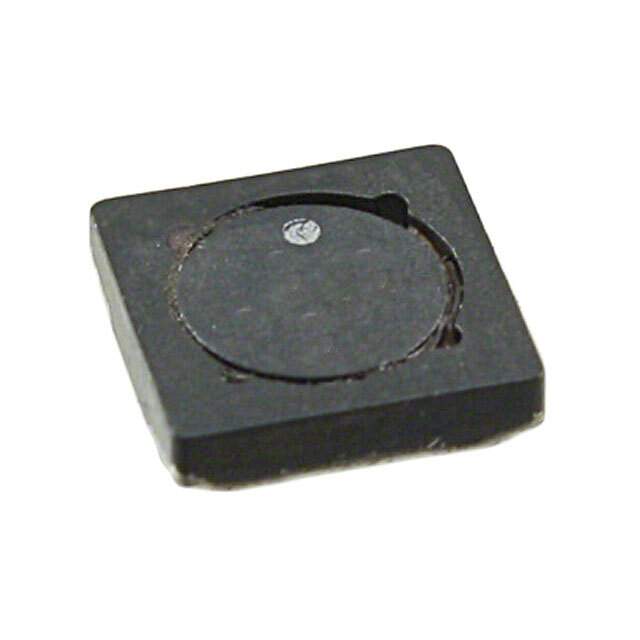

SD12-100-R

Name: SD12-100-R
Brand: Eaton Bussmann
SKU: 1165023
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SD12-100-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 10UH 938MA 284.4 MOHM / 10 µH Shielded Drum Core, Wirewound Inductor 938 mA 284.4mOhm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	SD
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	938 mA
Current - Saturation (Isat)	818mA
Shielding	Shielded
DC Resistance (DCR)	284.4mOhm
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SD12-100-ND,283-3651-6,SD12-100-R-ND,283-3651-2,SD12-100,SD12100R,283-3651-1
Standard Package	3,800
Win Source Part Number	1165023-SD12-100-R
Ultra Librarian 3D Model	Ultra Librarian SD12-100-R CAD Model

Description

The SD12-100-R is a drum core, wirewound fixed inductor from Eaton - Electronics Division.

Type: Shielded
Inductance: 10 µH
Tolerance: ±20%
DC Resistance (DCR): 284.4mOhm
Current Rating: 938 mA
Seated Height: 0.047" (1.20mm)
Dimensions: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Temperature Range: -40°C to 85°C
Mounting: SMD (SMT)
Package/Case: Non-Standard
Alternative Part: SD12100R
