Same model may have multiple batches, images only for reference.

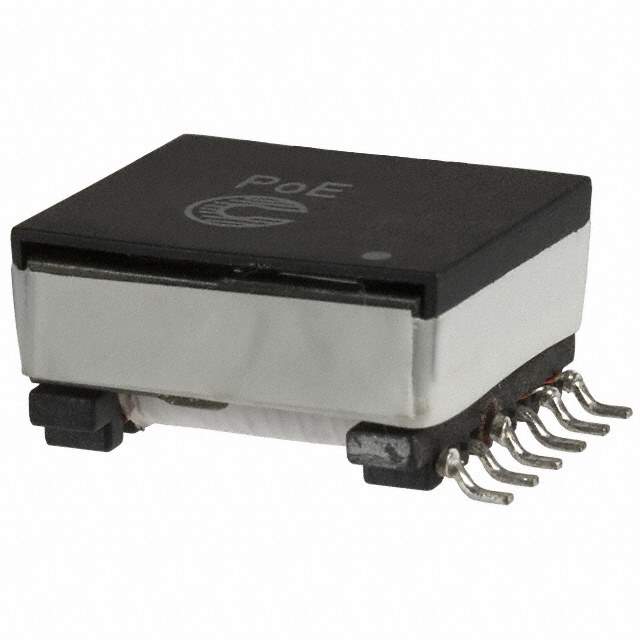

POE13W2VERS-R Real Image
Same model may have multiple batches, images only for reference.

POE13W2VERS-R

Part No POE13W2VERS-R
Manufacturer Eaton Bussmann
Catalog Switching Converter, SMPS Transformers
Description TRANSFRMR 100UH 13W 1.7A 12P SMD  /  Power Over Ethernet (PoE) For Configurable (For DC/DC) SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr Eaton - Electronics Division
Series PoE
Package Tape & Reel
Type Configurable (For DC/DC)
Applications Power Over Ethernet (PoE)
Voltage - Isolation 1500Vrms
Inductance @ Frequency 100µH @ 100kHz
Frequency 250kHz
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Dimension 0.709" L x 0.709" W (18.00mm x 18.00mm)
Height - Seated (Max) 0.404" (10.25mm)
Footprint 0.709" L x 1.024" W (18.00mm x 26.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Other Names 513-1106-1,513-1106-2,POE13W2VERS,POE13W2VERSR,513-1106-6
Standard Package 140
Win Source Part Number 1184777-POE13W2VERS-R
Ultra Librarian 3D Model Ultra Librarian POE13W2VERS-R CAD Model

Description

The PoE series switching converter, SMPS transformer is a high-quality component from Eaton - Electronics Division.

  • Type: Configurable (for DC/DC)
  • Package: Tape & Reel
  • Application: Power over Ethernet (PoE)
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.709" L x 0.709" W (18.00mm x 18.00mm)
  • MSL Level: 1 (Unlimited)
  • Voltage Isolation: 1500Vrms
  • HTSUS: 8504.31.4035
  • Other Names: 513-1106-1, 513-1106-2, POE13W2VERS, POE13W2VERSR, 513-1106-6
