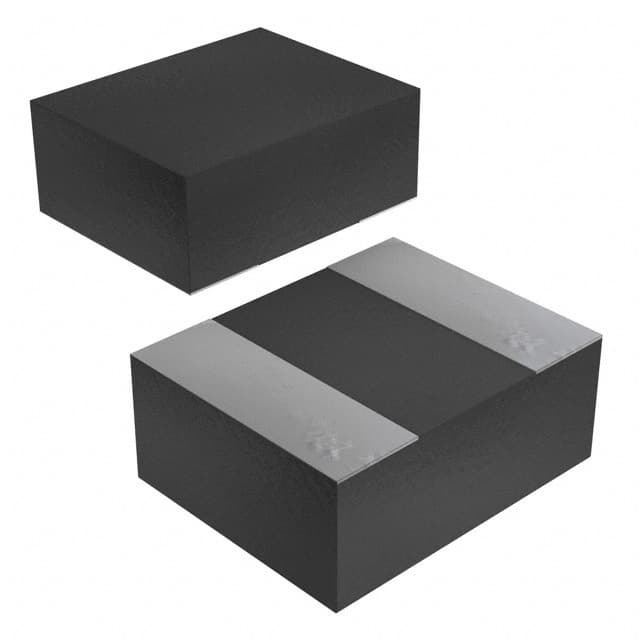

Same model may have multiple batches, images only for reference.
MPI2520R1-1R0-R
Same model may have multiple batches, images only for reference.

MPI2520R1-1R0-R

Part No MPI2520R1-1R0-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1UH 3.7A 42 MOHM SMD / 1 μH Shielded Multilayer Inductor 3.7 A 42mOhm Max 1008 (2520 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series MPI2520
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.7 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 885784-MPI2520R1-1R0-R
Ultra Librarian 3D Model Ultra Librarian MPI2520R1-1R0-R CAD Model

Description

The 885784-MPI2520R1-1R0-R is a fixed inductor from the MPI2520 series.

  • Series: MPI2520
  • Type: Shielded, multilayer inductor
  • Package: Tape & Reel
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Inductance: 1 μH
  • Maximum Seated Height: 0.047" (1.20mm)
  • Standard Package: 3,000 pieces
  • Tolerance: ±20%
  • Core Material: Metal composite
  • Temperature Range: -40°C to 125°C
  • Product Status: Obsolete
