Same model may have multiple batches, images only for reference.

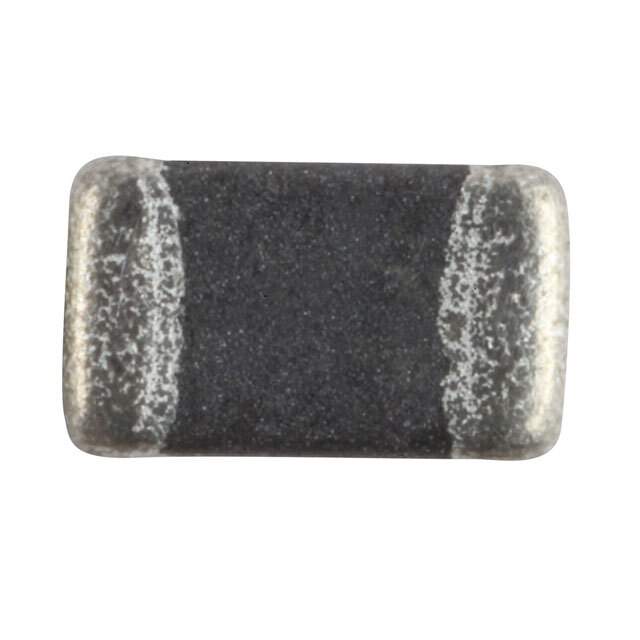

MCL2012V1-2R2-R Real Image
Same model may have multiple batches, images only for reference.

MCL2012V1-2R2-R

Part No MCL2012V1-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 150MA 360MOHM SM / 2.2 µH Unshielded Multilayer Inductor 150 mA 360mOhm Max 0805 (2012 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series MCL2012V1
Package Tape & Reel
Type Multilayer
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 150 mA
Shielding Unshielded
DC Resistance (DCR) 360mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.043" (1.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-MCL2012V1-2R2-RTR,283-MCL2012V1-2R2-RCT,283-MCL2012V1-2R2-RDKR
Standard Package 4,000
Win Source Part Number 1141996-MCL2012V1-2R2-R
Ultra Librarian 3D Model Ultra Librarian MCL2012V1-2R2-R CAD Model

Description

The MCL2012V1-2R2-R is a multilayer fixed inductor from Eaton - Electronics Division.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 360mOhm Max
  • Current Rating (Amps): 150 mA
  • Package Size: 0805 (2012 Metric)
  • Height: 0.043" (1.10mm)
  • Frequency Self-Resonant: 50MHz
  • Maximum Q @ Freq: not specified
  • Shielding: unshielded
  • Packaging: tape & reel
  • Applications: power supplies, computers, and telecommunication equipment
  • Temperature Range of Operation: -40°C to 85°C
