Same model may have multiple batches, images only for reference.

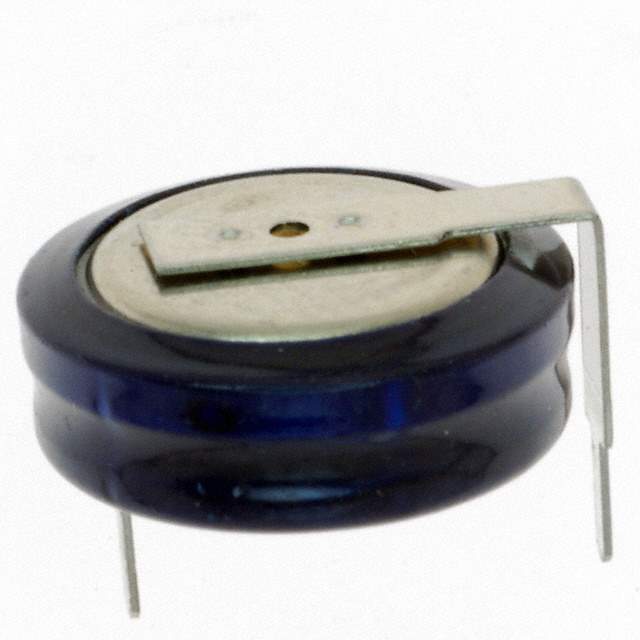

KR-5R5H105-R Real Image
Same model may have multiple batches, images only for reference.

KR-5R5H105-R

Part No KR-5R5H105-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V T/H / 1 F (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal 30Ohm @ 1kHz 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series KR
Package Bulk
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Axial, Can - Horizontal
Lead Spacing 0.787" (20.00mm)
Dimension 0.748" Dia (19.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Temperature Range - Operating -25°C ~ 70°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Other Names 283-2822,KR5R5H105R
Standard Package 500
Win Source Part Number 1035232-KR-5R5H105-R
Ultra Librarian 3D Model Ultra Librarian KR-5R5H105-R CAD Model

Description

The KR-5R5H105-R is an electric double layer capacitor (EDLC) designed for use in various applications.

  • Capacitance: 1 F
  • Voltage Rating: 5.5V
  • Package: Axial, Can - Horizontal
  • Mounting Type: Through-Hole
  • Operating Temperature: -25°C to 70°C
  • ESR (Equivalent Series Resistance): 30Ohm @ 1kHz
  • Lifetime: 1000 Hrs @ 70°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
