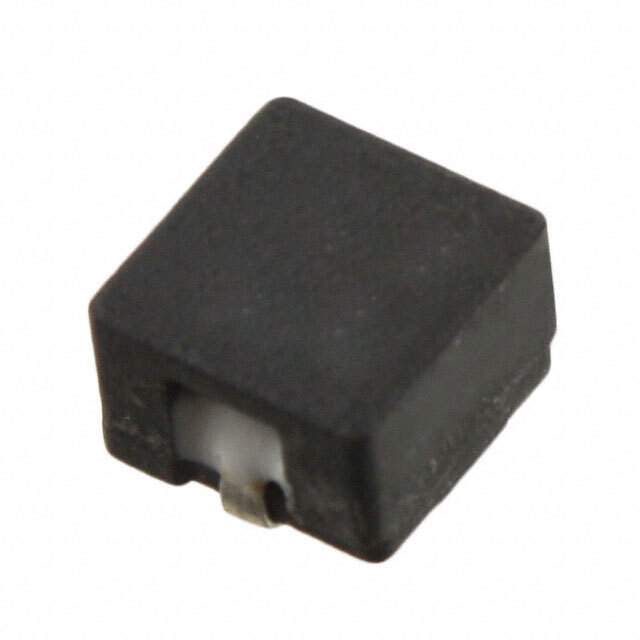

HCP0805-1R5-R Real Image
Same model may have multiple batches, images only for reference.

HCP0805-1R5-R

Part No HCP0805-1R5-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1.5UH 13.3A 6.8 MOHM
Datasheet
HCP0805-1R5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Powdered Iron
Inductance 1.5μH
Tolerance ±20%
Current Rating 13.3A
Current - Saturation 18A
DC Resistance (DCR) 6.8 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1042497-HCP0805-1R5-R
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HCP0805-1R5-R CAD Model

Description

The Eaton 1042497-HCP0805-1R5-R is a wirewound inductor that has a current rating of 13.3A and an inductance of 1.5μH.

  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material-Core: Powdered iron
  • Current Saturation: 18A
  • Frequency of Test: 100kHz
  • DC Resistance (DCR): 6.8 mOhm
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Limited
