Same model may have multiple batches, images only for reference.

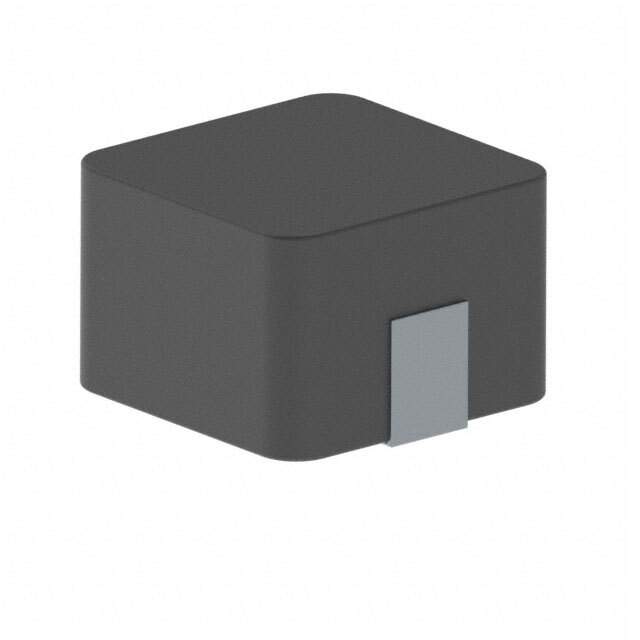

HCM1A0805-101-R Real Image
Same model may have multiple batches, images only for reference.

HCM1A0805-101-R

Part No HCM1A0805-101-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100UH - SMD / 100 µH Shielded Inductor Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCM1A
Package Tape & Reel
Material - Core Iron Powder
Inductance 100 µH
Tolerance ±20%
Current - Saturation (Isat) 2.7A
Shielding Shielded
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.319" L x 0.315" W (8.10mm x 8.00mm)
Height - Seated (Max) 0.213" (5.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-HCM1A0805-101-RTR,HCM1A0805-101-R-ND,HCM1A0805-101,283-HCM1A0805-101-RDKR,283-HCM1A0805-101-RCT
Standard Package 500
Win Source Part Number 967728-HCM1A0805-101-R
Ultra Librarian 3D Model Ultra Librarian HCM1A0805-101-R CAD Model

Description

The HCM1A0805-101-R is a shielded fixed inductor manufactured by Eaton - Electronics Division.

  • Series: HCM1A
  • Inductance: 100 µH
  • Tolerance: ±20%
  • Core Material: Iron Powder
  • Package/Case: Nonstandard
  • DC Resistance (DCR): Not Specified
  • Q @ Freq: Not Specified
  • AEC-Q200: Rated
  • Temperature Range: -55°C to 155°C
  • Height: 0.213" (5.40mm)
  • Dimension: 0.319" L x 0.315" W (8.10mm x 8.00mm)
  • Current Saturation (Isat): 2.7A
  • Package: Tape & Reel
  • Standard Package: 500
