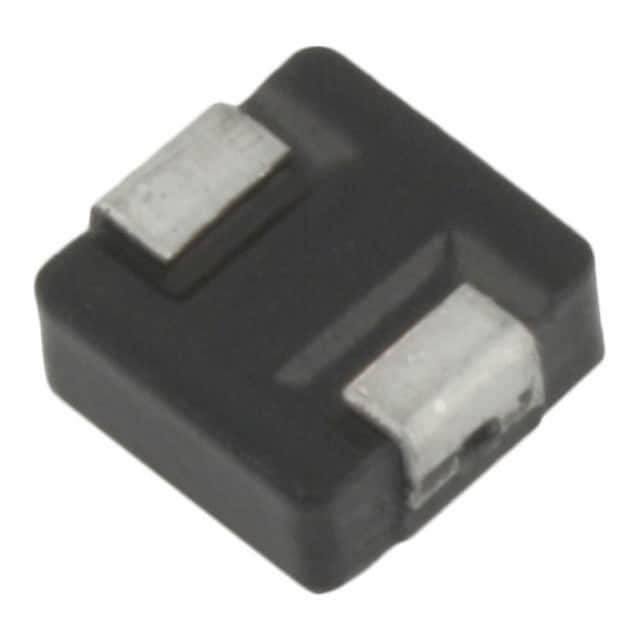

Same model may have multiple batches, images only for reference.
HCM0703-4R7-R
Same model may have multiple batches, images only for reference.

HCM0703-4R7-R

Part No HCM0703-4R7-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 5.5A 40 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series HCM0703
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 40mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.280" L x 0.260" W (7.10mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 845520-HCM0703-4R7-R
Ultra Librarian 3D Model Ultra Librarian HCM0703-4R7-R CAD Model

Description

The 845520-HCM0703-4R7-R is a fixed inductor from the HCM0703 series. It is a drum core, wirewound inductor that comes in a tape & reel package. The inductor is shielded and has a size of 0.280" L x 0.260" W (7.10mm x 6.60mm).

  • Inductance: 4.7 µH
  • Maximum Seated Height: 0.118" (3.00mm)
  • Package Size: 1,500 pieces
  • Tolerance: ±20%
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 5.5 A
  • Product Status: active
  • Manufacturer: Eaton Bussmann
