Same model may have multiple batches, images only for reference.

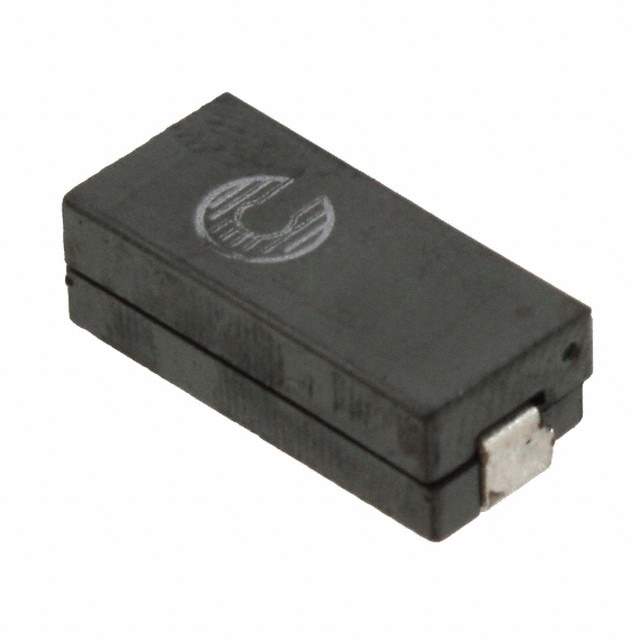

FP1505R1-R30-R Real Image
Same model may have multiple batches, images only for reference.

FP1505R1-R30-R

Part No FP1505R1-R30-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 300NH 53A 0.47MOHM SMD / 300 nH Unshielded Drum Core, Wirewound Inductor 53 A 0.47mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 300 nH
Tolerance ±10%
Current Rating (Amps) 53 A
Current - Saturation (Isat) 35A
Shielding Unshielded
DC Resistance (DCR) 0.47mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.579" L x 0.264" W (14.70mm x 6.70mm)
Height - Seated (Max) 0.197" (5.00mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 744
Win Source Part Number 1327547-FP1505R1-R30-R
Ultra Librarian 3D Model Ultra Librarian FP1505R1-R30-R CAD Model

Description

The FP1505R1-R30-R is a fixed inductor designed by Eaton - Electronics Division.

  • Packaging: reel - TR
  • Type: drum core, wirewound
  • Shielding: unshielded
  • Size / Dimension: 0.579" L x 0.264" W (14.70mm x 6.70mm)
  • Inductance: 300 nH
  • Tolerance: ±10%
  • Current Rating: 53 A
  • DC Resistance: 0.47mOhm
