Same model may have multiple batches, images only for reference.

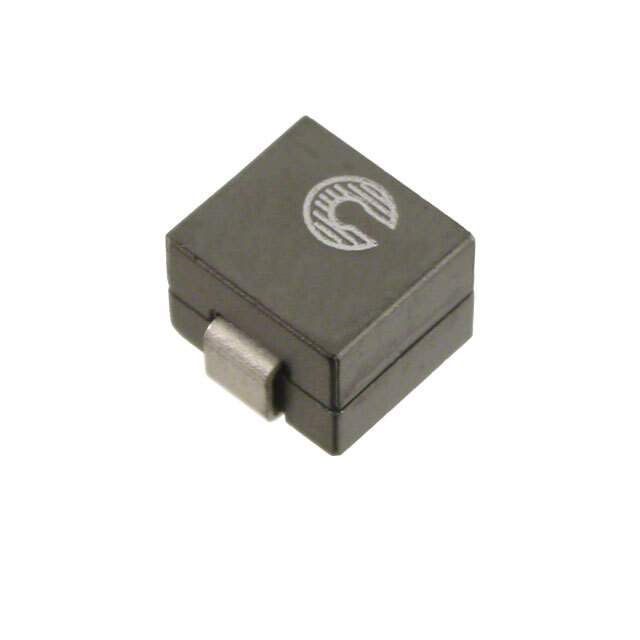

FP0705R1-R18-R Real Image
Same model may have multiple batches, images only for reference.

FP0705R1-R18-R

Part No FP0705R1-R18-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 180NH 43A 0.25MOHM SMD / 180 nH Unshielded Drum Core, Wirewound Inductor 43 A 0.25mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series FLAT-PAC, FP0705
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 180 nH
Tolerance ±10%
Current Rating (Amps) 43 A
Current - Saturation (Isat) 25A
Shielding Unshielded
DC Resistance (DCR) 0.25mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.195" (4.95mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1600-1,FP0705R1R18R,513-1600-6,513-1600-2
Standard Package 950
Win Source Part Number 1166658-FP0705R1-R18-R
Ultra Librarian 3D Model Ultra Librarian FP0705R1-R18-R CAD Model

Description

The FP0705R1-R18-R is a drum core, wirewound inductor from Eaton - Electronics Division.

  • Series: FLAT-PAC, FP0705
  • Package: Nonstandard
  • Inductance: 180 nH
  • Current Rating: 43 A
  • Tolerance: ±10%
  • Applications: EMI and RFI suppression
