Same model may have multiple batches, images only for reference.

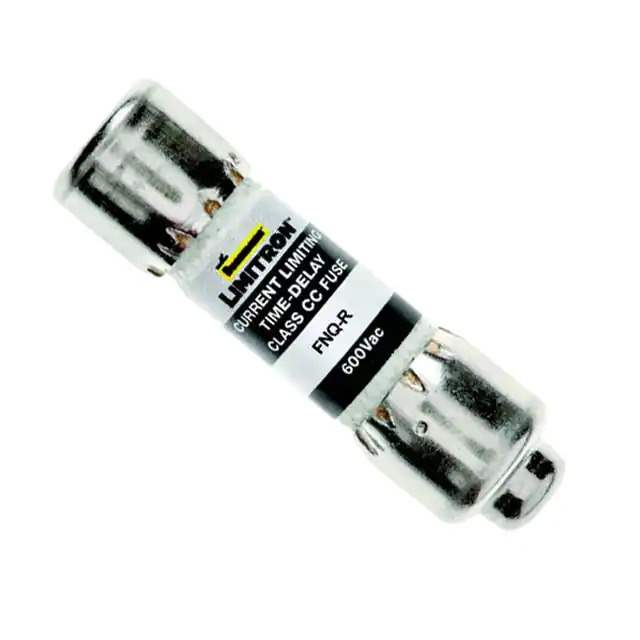

FNQ-R-30 Real Image
Same model may have multiple batches, images only for reference.

FNQ-R-30

Part No FNQ-R-30
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 30A 600VAC 5AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Eaton Bussmann
Series Limitron™ FNQ-R
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 30A
Voltage Rating - AC 600 V
Response Time Slow Blow
Applications Electrical, Industrial
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Standard Package 10 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 848039-FNQ-R-30
Ultra Librarian 3D Model Ultra Librarian FNQ-R-30 CAD Model

Description

The 848039-FNQ-R-30 is a cartridge fuse from the Limitron™ FNQ-R series.

  • Series: Limitron™ FNQ-R
  • Application: Electrical and Specialty Fuse
  • Voltage Rating: 600 V AC
  • Fuse Type: Slow Blow
  • Breaking Capacity: 200kA @ Rated Voltage
  • Size: 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
  • Application: Electrical and Industrial
  • Package: Bulk
  • Mounting: Holder Required
  • Fuse Size: 5AG, 10mm x 38mm (Midget)
  • Current Rating: 30A
  • Status: Active
  • Manufacturer: Eaton Bussmann
  • Approvals: CE, CSA, UL
