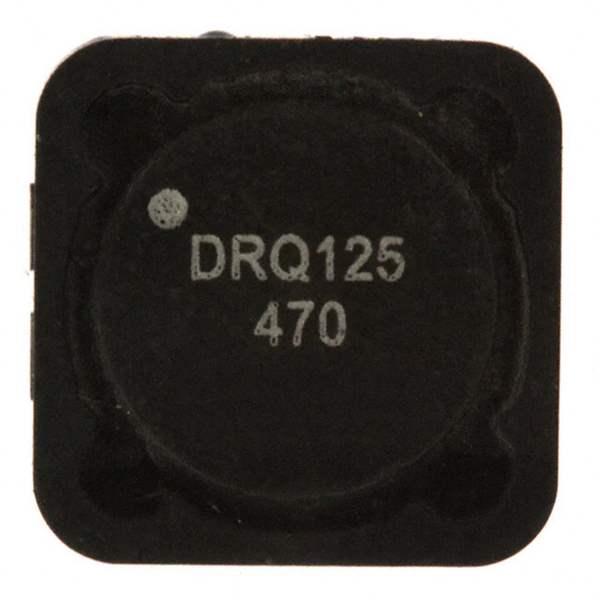

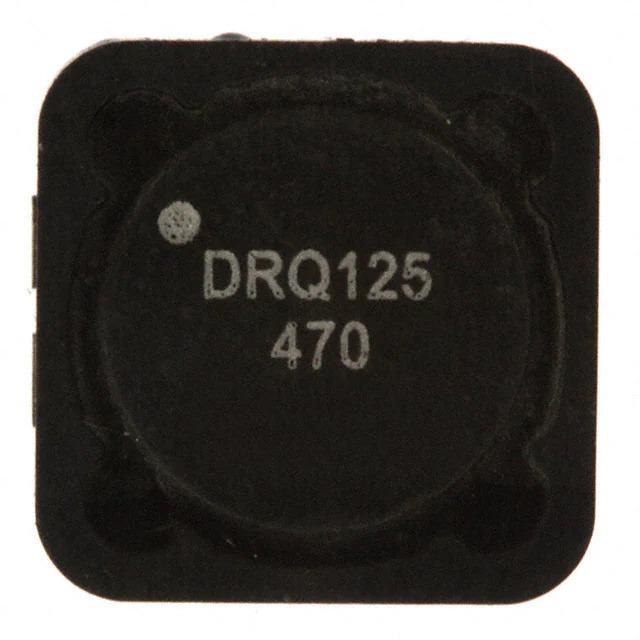

DRQ125-470-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

DRQ125-470-R

Part No DRQ125-470-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 47.47UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Product Status Active
Number of Coils 2
Inductance - Connected In Parallel 47.47 µH
Inductance - Connected In Series 189.9 µH
Tolerance ±20%
Current Rating - Parallel 2.71 A
Current Rating - Series 1.35 A
Current Saturation - Parallel 3.24 A
Current Saturation - Series 1.62 A
DC Resistance (DCR) - Parallel 74mOhm
DC Resistance (DCR) - Series 297mOhm
Shielding Shielded
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1378273-DRQ125-470-R
Ultra Librarian 3D Model Ultra Librarian DRQ125-470-R CAD Model

Description

The DRQ125-470-R is a signal transformer array manufactured by Eaton - Electronics Division.

  • Series: DRQ
  • Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Mounting: Surface Mountable
  • Size: 0.492" x 0.492" (12.50mm x 12.50mm)
  • Height: 0.236" (6.00mm)
  • Number of Coils: 2 (Parallel)
  • Inductance: 47.47µH (Parallel)
  • Current Rating (Parallel): 2.71A
  • Current Rating (Series): 1.35A
