Same model may have multiple batches, images only for reference.

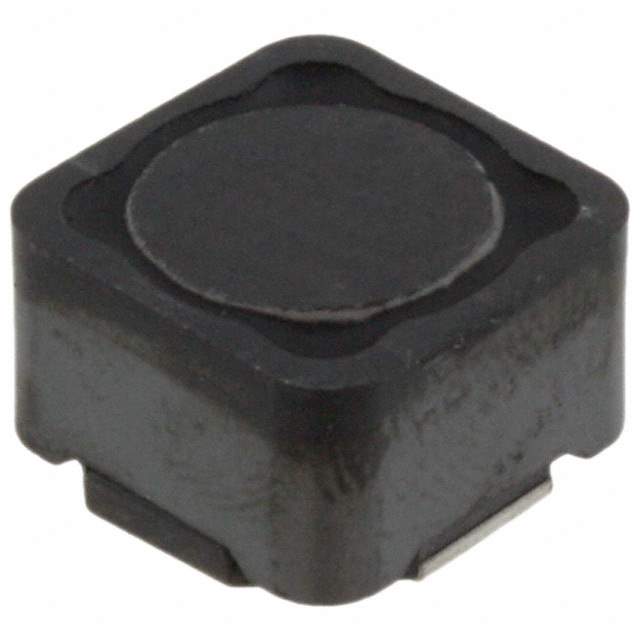

DRA127-470-R Real Image
Same model may have multiple batches, images only for reference.

DRA127-470-R

Part No DRA127-470-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 47UH 2.62A 91 MOHM SMD / 47 µH Shielded Wirewound Inductor 2.62 A 91mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Wirewound
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2.62 A
Current - Saturation (Isat) 5.09A
Shielding Shielded
DC Resistance (DCR) 91mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 283-3596-1,283-3596-2,DRA127-470-R-ND,DRA127470R,283-3596-6
Standard Package 350
Win Source Part Number 1327500-DRA127-470-R
Ultra Librarian 3D Model Ultra Librarian DRA127-470-R CAD Model

Description

The DRA127-470-R is a surface mount fixed inductor from Eaton with an inductance of 47μH and a current rating of 2.62A.

  • Inductance: 47μH
  • Current Rating: 2.62A
  • Mounting: Surface Mount
  • Shielded: Yes
  • Tolerance: ±20%
  • Core Material: Wirewound
  • DC Resistance: 91mOhm
  • Size: 0.492” L x 0.492” W (12.50mm x 12.50mm)
  • Height: 0.315” (8.00mm)
  • Packaging: Reel of 350 pieces
  • AEC-Q200 rated: Yes
  • Operating Temperature: -40°C to 165°C
  • RoHS3 compliant: Yes
