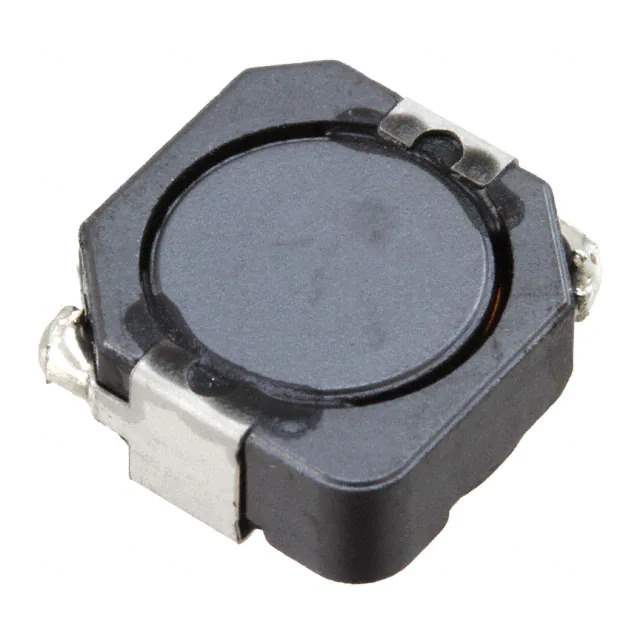

Same model may have multiple batches, images only for reference.

CDRH104RNP-150NC

Name: CDRH104RNP-150NC
Brand: Sumida America Components Inc.
SKU: 578121
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CDRH104RNP-150NC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 15UH 3.1A 50 MOHM SMD / 15 μH Shielded Inductor 3.1 A 50mOhm Max Nonstandard
Datasheet	CDRH104RNP-150NC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CDRH104R
Package	Tape & Reel
Product Status	Active
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±30%
Current Rating (Amps)	3.1 A
Current - Saturation (Isat)	3.6A
Shielding	Shielded
DC Resistance (DCR)	50mOhm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	578121-CDRH104RNP-150NC
Ultra Librarian 3D Model	Ultra Librarian CDRH104RNP-150NC CAD Model

Alternative Products

Description

The CDRH104RNP-150NC is a fixed inductor manufactured by Sumida America Components Inc.

Series: CDRH104R
Mounting Type: Surface Mount
Shielding: Shielded
Size: 0.402" L x 0.394" W (10.20mm x 10.00mm)
Inductance: 15 µH
Height: 0.157" (4.00mm) Max
Tolerance: ±30%
DCR: 50mOhm Max
Operating Temperature: -40°C to 100°C
Current Rating: 3.1A
Packaging: Tape & Reel
Package/Case: Nonstandard
Material: Ferrite
ECCN: EAR99
Status: Active
Standard Package: 1,000 pcs
