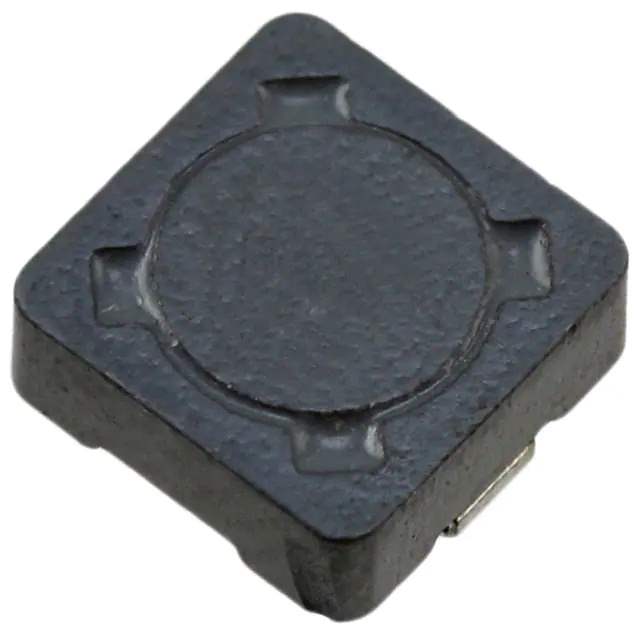

DR73-101-R Real Image
Same model may have multiple batches, images only for reference.

DR73-101-R

Part No DR73-101-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100UH 730MA 527MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series DR
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 730 mA
Current - Saturation (Isat) 790mA
Shielding Shielded
DC Resistance (DCR) 527mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.299" L x 0.299" W (7.60mm x 7.60mm)
Height - Seated (Max) 0.140" (3.55mm)
Standard Package 1,350 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 585842-DR73-101-R
Ultra Librarian 3D Model Ultra Librarian DR73-101-R CAD Model

Description

The 585842-DR73-101-R is a fixed inductor from the DR series by Eaton Bussmann.

  • Core Type: drum core
  • Construction: wirewound
  • Package: tape & reel
  • Design: shielding design
  • Length: 0.299"
  • Width: 0.299"
  • Inductance: 100µH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.140"
  • DC Resistance: 527mOhm
  • Operating Temperature: -40°C to 125°C
  • Product Status: active
  • Applications: power supplies, automotive electronics, and telecommunications equipment
