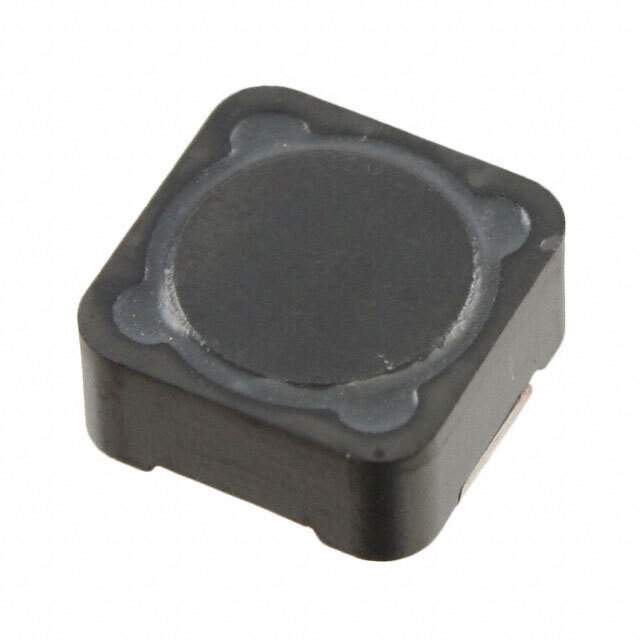

DR125-331-R Real Image
Same model may have multiple batches, images only for reference.

DR125-331-R

Part No DR125-331-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 330UH 1.06A 482MOHM SM / 330 µH Shielded Drum Core, Wirewound Inductor 1.06 A 482mOhm Nonstandard
Datasheet
DR125-331-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series DR
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±20%
Current Rating (Amps) 1.06 A
Current - Saturation (Isat) 1.22A
Shielding Shielded
DC Resistance (DCR) 482mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names DR125331R,513-1813-6,DR125-331-R-ND,DR125-331-ND,513-1813-1,DR125-331,513-1813-2
Standard Package 600
Win Source Part Number 1160534-DR125-331-R
Ultra Librarian 3D Model Ultra Librarian DR125-331-R CAD Model

Description

The DR125-331-R is a drum core, wirewound type of fixed inductor from Eaton - Electronics Division.

  • Type: drum core, wirewound fixed inductor
  • Shielded: yes
  • Package: tape and reel
  • Inductance: 330 µH
  • Tolerance: ±20%
  • DC Resistance: 482mOhm
  • Saturation Current: 1.22A
  • Height (seated): 0.236" (6.00mm)
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
