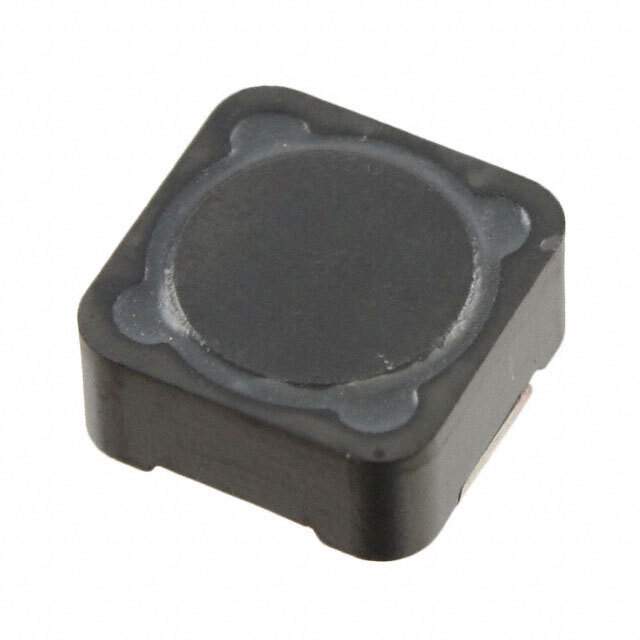

DR125-221-R Real Image
Same model may have multiple batches, images only for reference.

DR125-221-R

Part No DR125-221-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 220UH 1.19A 384MOHM SM / 220 µH Shielded Drum Core, Wirewound Inductor 1.19 A 384mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series DR
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 1.19 A
Current - Saturation (Isat) 1.51A
Shielding Shielded
DC Resistance (DCR) 384mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1549-1,DR125221R,513-1549-2,DR125-221-ND,513-1549-6,DR125-221,DR125-221-R-ND
Standard Package 600
Win Source Part Number 999398-DR125-221-R
Ultra Librarian 3D Model Ultra Librarian DR125-221-R CAD Model

Description

The DR fixed inductor is part of the DR series and has a drum core, wirewound type.

  • Type: shielded
  • Inductance: 220 µH
  • Tolerance: ±20%
  • DC Resistance: 384mOhm
  • Current Rating: 1.19 A
  • Mounting: through-hole
  • Package/Case: nonstandard
  • Height: 0.236" (6.00mm) when seated
  • Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Core Material: ferrite
  • Inductance Frequency: 100 kHz
  • Temperature Range: -40°C to 125°C
  • Alternative Parts: 513-1549-1, DR125221R, 513-1549-2, DR125-221-ND, 513-1549-6, DR125-221, DR125-221-R-ND
  • Manufacturer: Eaton - Electronics Division
